| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
467 pcs
|
467 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination |

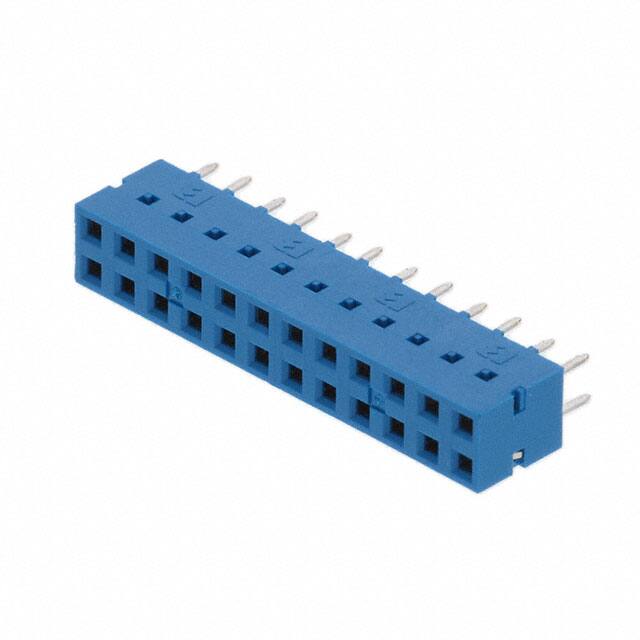

The Amphenol ICC 76342-312LF is a 24 position receptacle female socket connector designed for board to board applications. It features a 2.54mm (0.100") pitch and row spacing, with all 24 positions loaded in a 2 row configuration.
The connector uses through hole solder termination and a push-pull fastening type. Contacts have a tin finish with a thickness of 0.76µm (30.0µin). The blue insulation has a UL94 V-0 flammability rating, and the mated stacking height is 11.04mm. This connector is RoHS3 compliant and has an MSL of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.45 | $3.45 |
| 19+ | $2.80 | $2.80 |
| 114+ | $2.47 | $2.47 |
| 513+ | $2.22 | $2.22 |
| 1,007+ | $2.12 | $2.12 |
| 5,016+ | $1.89 | $1.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 24 positions, all loaded.
The pitch is 2.54mm (0.100 inches) and the row spacing is also 2.54mm.
The connector is through hole mounted with solder termination.
The contact finish is tin with a thickness of 0.76µm (30.0µin).
RoHS compliance is reported as RoHS3 Compliant, but this data is unverified.
