| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
437 pcs
|
437 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination |

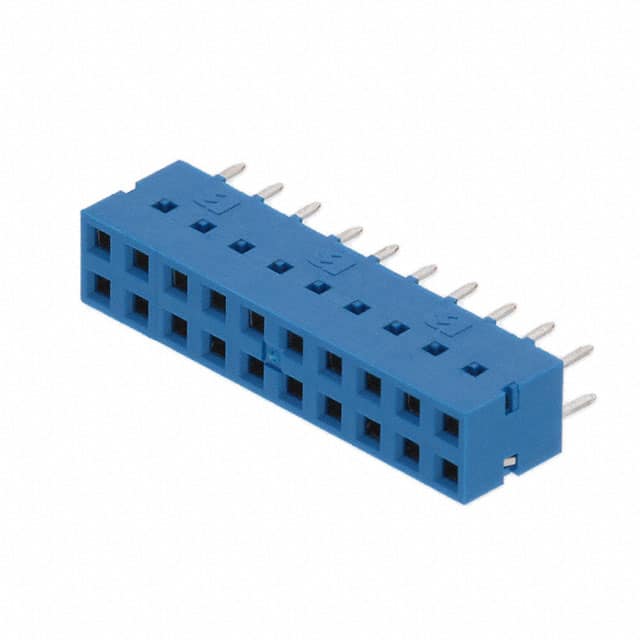

The 76342-310LF is a 20 position receptacle connector from Amphenol ICC designed for board-to-board applications. It features a 2.54mm pitch and 2.54mm row spacing with two rows of female socket contacts. The connector uses through hole mounting with solder termination and has a push-pull fastening type. The insulation is blue with a height of 6.99mm and the mated stacking height is 11.04mm. Contacts are tin finished with a thickness of 30.0µin (0.76µm) and a contact length of 2.90mm. The housing material has a UL94 V-0 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.37 | $2.37 |
| 23+ | $1.90 | $1.90 |
| 115+ | $1.70 | $1.70 |
| 506+ | $1.53 | $1.53 |
| 1,012+ | $1.46 | $1.46 |
| 5,014+ | $1.30 | $1.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions, all loaded, in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
Through hole with solder termination.
Tin with 30.0µin (0.76µm) thickness.
Blue insulation with a height of 6.99mm (0.275").
11.04mm.
UL94 V-0.
