| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,247 pcs
|
1247 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination |

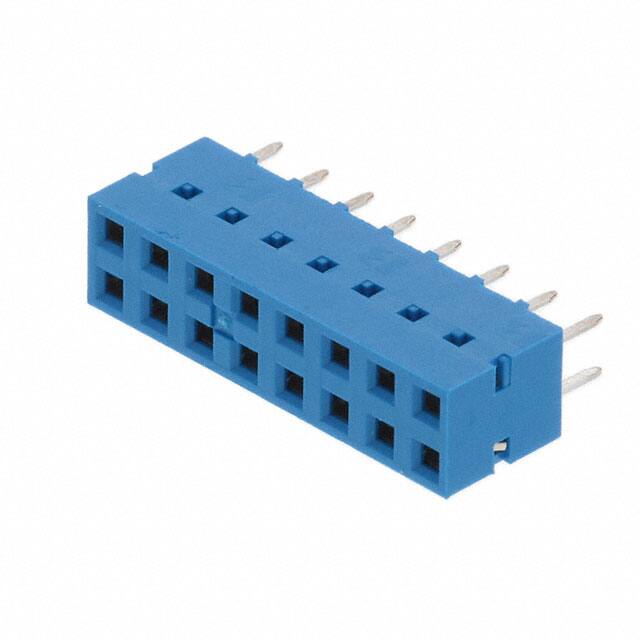

The Amphenol ICC 76342-308LF is a 16 position receptacle designed for board to board interconnections. It features a 2.54mm pitch and dual row configuration, making it suitable for standard spacing applications. The through hole mounting and solder termination provide a reliable mechanical and electrical connection.
This connector uses a push-pull fastening type and has a mated stacking height of 11.04mm. The insulation is colored blue and has a flammability rating of UL94 V-0. The female socket contacts are finished with 30.0µin (0.76µm) of tin. All 16 positions are loaded.
The contact length is 2.90mm and the insulation height is 6.99mm. This receptacle is for use in board to board configurations where a robust, low-profile connection is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.24 | $2.24 |
| 29+ | $1.76 | $1.76 |
| 116+ | $1.60 | $1.60 |
| 522+ | $1.44 | $1.44 |
| 1,015+ | $1.37 | $1.37 |
| 5,017+ | $1.23 | $1.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Female socket.
Through hole with solder termination.
16 positions, all loaded, arranged in 2 rows.
2.54mm (0.100").
Push-pull.
RoHS3 Compliant (unverified).
UL94 V-0.
