| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
429 pcs
|
429 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style |

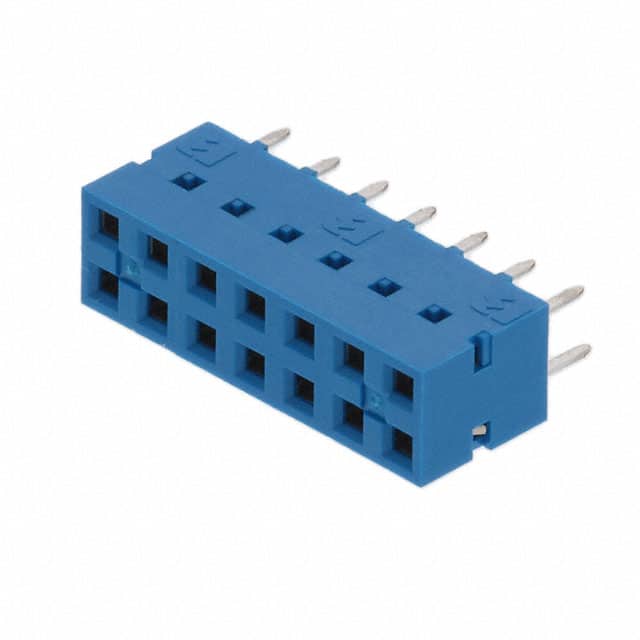

This part is a 14-position receptacle connector from Amphenol ICC, designed for board-to-board applications. It features a 2.54mm pitch with 2 rows of female socket contacts.
The connector has a through hole mounting style with solder termination. The insulation is blue and rated UL94 V-0 flammability. Contact finish is tin with 30.0µin thickness.
The mated stacking height is 11.04mm, and the insulation height is 6.99mm. It uses push-pull fastening for secure mating.
This connector is suitable for various board-to-board interconnection needs where reliable connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
| 33+ | $1.56 | $1.56 |
| 132+ | $1.42 | $1.42 |
| 528+ | $1.28 | $1.28 |
| 1,023+ | $1.23 | $1.23 |
| 5,016+ | $1.10 | $1.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions.
2.54mm (0.100").
Through hole.
Tin with 30.0µin thickness.
UL94 V-0.
11.04mm.
RoHS3 Compliant (unverified).
