| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
792 pcs
|
792 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Style | |
| Termination | |
| Termination Style |

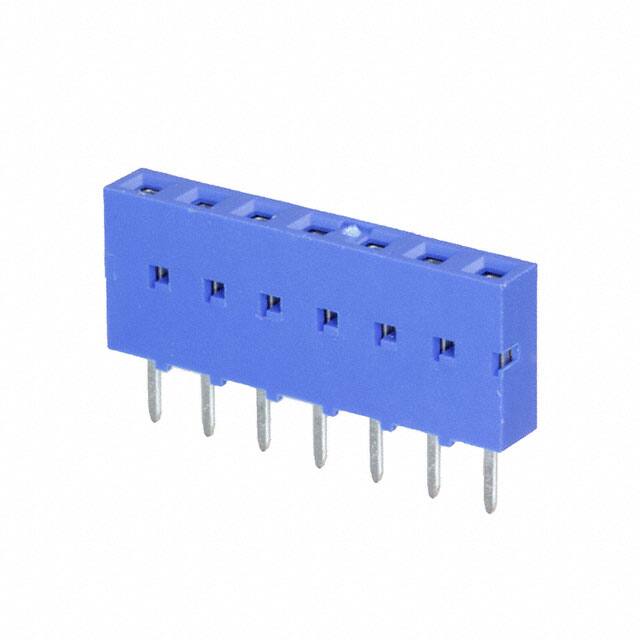

The 76341-307LF is a 7-position, single-row board-to-board receptacle from Amphenol ICC. It features female socket contacts with a 2.54mm (0.100") pitch and through-hole solder termination. The contact finish is tin with a thickness of 30.0µin (0.76µm), and the contact length is 2.90mm (0.114").
The insulation is blue with a height of 6.99mm (0.275") and is rated UL94 V-0 for flammability. The mated stacking height is 11.04mm. The connector uses a push-pull fastening type and all positions are loaded. This receptacle is designed for board-to-board applications requiring a low-profile, reliable interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.17 | $1.17 |
| 33+ | $0.91 | $0.91 |
| 132+ | $0.83 | $0.83 |
| 528+ | $0.75 | $0.75 |
| 1,023+ | $0.71 | $0.71 |
| 5,016+ | $0.64 | $0.64 |
| 10,032+ | $0.61 | $0.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7 positions.
2.54mm (0.100").
Through hole.
Tin, 30.0µin (0.76µm).
Blue.
11.04mm.
UL94 V-0.
