| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
216 pcs
|
216 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Fuse Size | |
| Hipot Rating (Minimum @ Line to Ground) | |
| Hipot Rating (Minimum @ Line to Line) | |
| Insulation Resistance (Minimum @ Line & Neutral @ 500 VDC) | |
| Insulation Resistance (Minimum @ Line & Neutral to Ground @ 500 VDC) | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Frequency | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Switch Features | |
| Termination | |
| Termination Style | |
| Voltage Rating |

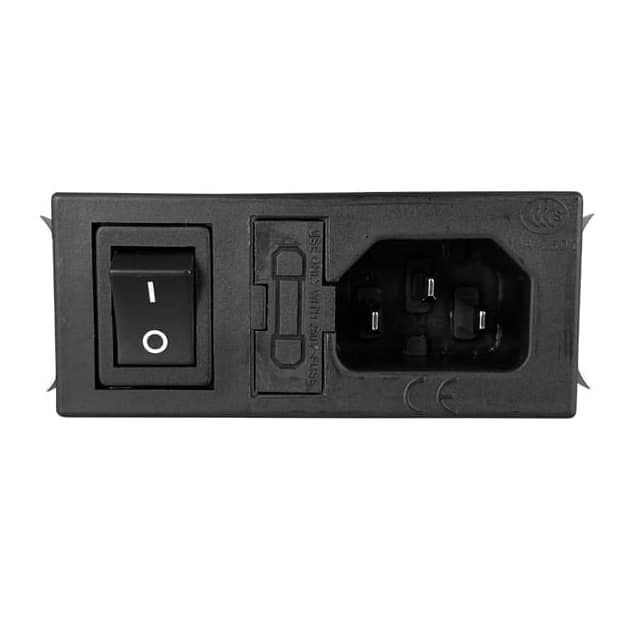

The Qualtek 762-18/002 is a multi-function power entry module designed for commercial equipment requiring a compact, integrated power inlet solution. It features an IEC 320-C14 connector style with a receptacle and male blades, combining power input, an on-off switch, and a single 5x20mm fuse holder in one panel-mount unit.
Electrical ratings include 6A RMS maximum at 115/250VAC over a 48-440Hz operating frequency range. The module meets minimum hipot ratings of 2000VDC line-to-ground and line-to-line, and minimum insulation resistance of 10MΩ at 500VDC. Safety approvals include CSA, SEMKO, and UL.
Mechanically, the module mounts via snap-in into a rectangular panel cutout of 66.04mm x 27.00mm, accommodating panel thicknesses from 1.02mm to 1.78mm. Termination is via 0.250" (6.3mm) quick connect tabs for easy wiring. The fuse holder accepts standard 5x20mm fuses (fuse not included). The module is RoHS compliant.
115/250 VAC.
6 A RMS maximum at 115/250VAC.
A single 5x20mm fuse (fuse not included).
Yes, it includes an on-off switch.
Panel mount, snap-in.
Rectangular 66.04mm x 27.00mm.
CSA, SEMKO, and UL.
