| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Handle Material | |
| Industry Recognized Mating Diameter | |
| Ingress Protection | |
| Insulation Color | |
| Insulator Material | |
| Internal Switch(s) | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| internal_switch |

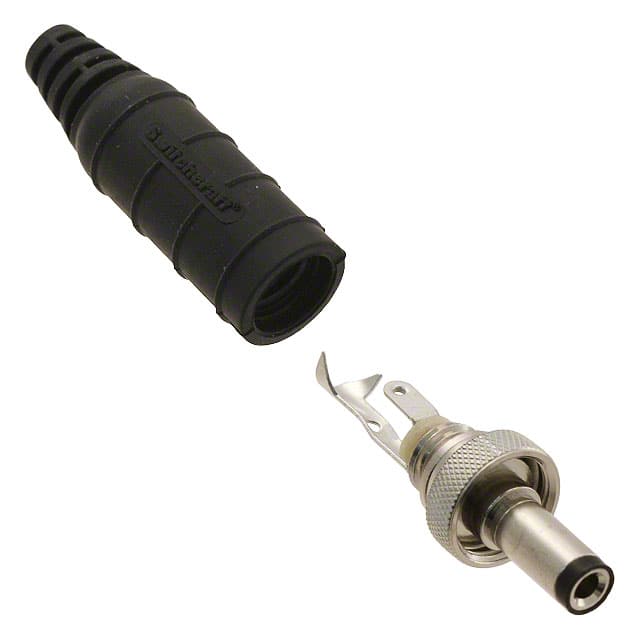

The Conxall/Switchcraft 761KS15 is a sealed power plug designed for reliable DC power connections. It features a 2.50mm inner diameter and 5.50mm outer diameter mating interface, with a free hanging (in-line) mounting style and solder eyelet termination. The connector is rated for 30VDC at 5A and is IP68 rated for protection against dust and water ingress.
This plug includes a cable clamp and thread lock for secure cable retention and mating. The contacts are made of copper alloy with tin plating on the terminals and nickel plating on the locking ring. The insulator is thermoplastic, and the handle is thermoplastic rubber over thermoplastic in black. The connector is unshielded and does not contain an internal switch.
The 761KS15 is RoHS3 compliant and part of the 761KS series of sealed power plugs from Conxall/Switchcraft. It is suitable for applications requiring a rugged, environmentally sealed DC power connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.29 | $8.29 |
| 10+ | $7.04 | $7.04 |
| 25+ | $6.60 | $6.60 |
| 50+ | $6.29 | $6.29 |
| 100+ | $5.99 | $5.99 |
| 300+ | $5.54 | $5.54 |
| 500+ | $5.54 | $5.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The industry recognized mating diameter is 2.50mm ID and 5.50mm OD.
The connector is rated for 30VDC and 5A.
The connector has an IP68 rating.
It uses solder eyelet(s) termination.
Yes, it is RoHS3 compliant.
