| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
125 pcs
|
125 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Fuse Holder | |
| Fuse Holder Type | |
| Fuse Holder, Drawer | |
| Hipot Rating (Minimum @ Line to Ground, 1 minute) | |
| Hipot Rating (Minimum @ Line to Line, 1 minute) | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Frequency | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Switch Features | |
| Termination | |
| Termination Style | |
| Voltage Rating |

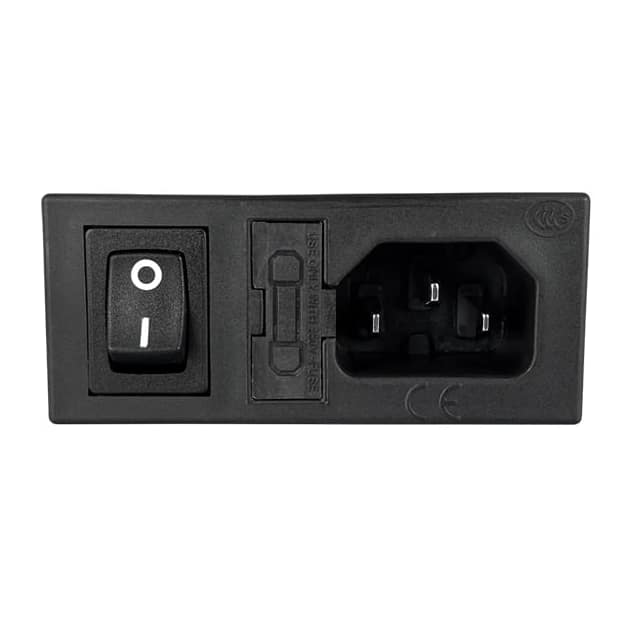

The Qualtek 761-18/003 is a power entry module (PEM) designed for AC power input applications. It features an IEC 320-C14 receptacle with male blades, providing a standardized interface for detachable power cords. This module is panel mount with snap-in installation, making it easy to integrate into enclosures.
Electrically, the module is rated for 6 A at 115/250 VAC over a frequency range of 48-440 Hz. It has a hipot rating of 2000 VDC line-to-ground and line-to-line, and a minimum insulation resistance of 10 MOhm at 500 VDC. The module is unfiltered, suitable for applications where external filtering is employed.
Mechanically, it requires a rectangular panel cutout of 66.04 mm x 27.00 mm and accepts panel thicknesses from 1.02 mm to 1.78 mm. Terminals are quick connect 0.157" for easy wiring. The module includes an SPST on-off switch and a single 5x20mm fuse holder (fuse not included).
This PEM is commonly used in power supplies, instrumentation, and industrial equipment where a switched and fused IEC inlet is needed. It is RoHS compliant and carries approvals from CSA, SEMKO, and UL.
3 positions.
6 A at 115/250 VAC.
115/250 VAC.
Panel Mount, Snap-In.
Yes, single 5x20mm fuse holder (fuse not included).
Yes, SPST On-Off switch.
48-440 Hz.
