| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actual Diameter | |
| Automotive Grade | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Industrial Grade | |
| Industry Recognized Mating Diameter | |
| Insulation Color | |
| Internal Switch(s) | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Shielding | |
| Termination |

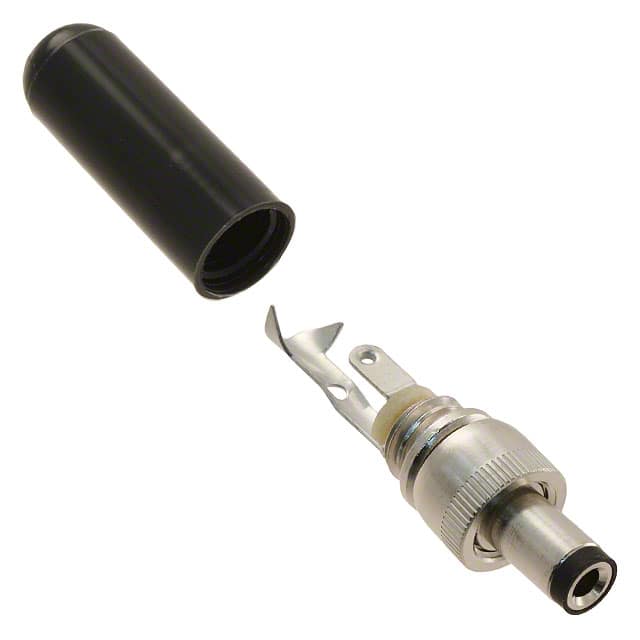

The 760K is a female power plug connector from Conxall/Switchcraft designed for 2.5mm inner diameter and 5.5mm outer diameter barrel interfaces. It terminates with solder eyelets and is intended for free hanging (in-line) mounting. The connector includes mounting hardware and a thread lock for secure coupling.
Internally, the 760K has 2 conductors and 2 contacts, with no internal switch. It is unshielded and features a black thermoplastic handle and black insulation. The plug body has a 5/16-24 UNF-2A thread and the floating lockring uses a 5/16-32 NEF-2B internal thread. Materials include brass nickel-plated conductors and lockring, brass tin-plated terminals, and thermoplastic insulators and handle.
The part is shipped unassembled and includes a cable clamp and coupling ring. It is RoHS compliant. Typical applications include DC power supply connections and low-voltage power distribution in electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.99 | $6.99 |
| 10+ | $5.94 | $5.94 |
| 25+ | $5.57 | $5.57 |
| 50+ | $5.30 | $5.30 |
| 100+ | $5.05 | $5.05 |
| 300+ | $4.67 | $4.67 |
| 500+ | $4.60 | $4.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 contacts (2 conductors, 2 contacts).
5 A.
Free Hanging (In-Line).
Solder Eyelet(s).
2.50mm ID (0.098") and 5.50mm OD (0.217").
Mounting hardware and thread lock.
Female (note: distributor spec conflict, but spec says female).
