| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Gender | |
| Industry Recognized Mating Diameter | |
| Insulation Color | |
| Internal Switch(s) | |
| Lead Style | |
| Mating Length | |
| Mounting Type | |
| Number of Positions | |
| Shielding | |
| Termination | |
| Termination Style |

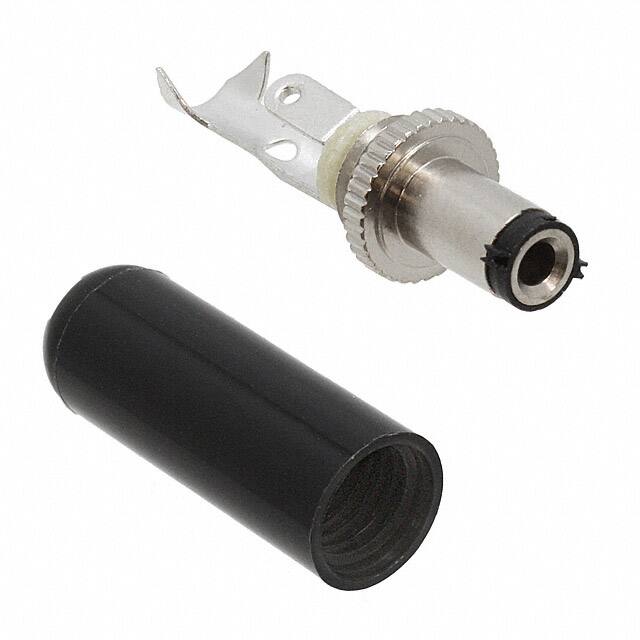

The 760BK from Conxall/Switchcraft is a female power plug connector designed for free hanging (in-line) mounting. It features industry-recognized mating diameters of 2.50mm ID (0.098") and 5.50mm OD (0.217"), with a mating length of 11.70mm (0.461").
The connector supports 2 conductors and 2 contacts, with termination via solder eyelet(s). It is unshielded and does not contain an internal switch. The insulation color is black.
Rated for 5A, this connector is suitable for low to moderate power applications requiring a reliable in-line connection. The free hanging design allows for flexible cable assembly without panel mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.36 | $10.36 |
| 10+ | $8.80 | $8.80 |
| 25+ | $8.25 | $8.25 |
| 50+ | $7.85 | $7.85 |
| 100+ | $7.48 | $7.48 |
| 300+ | $6.92 | $6.92 |
| 500+ | $6.68 | $6.68 |
| 1,000+ | $6.36 | $6.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The industry recognized mating diameters are 2.50mm ID (0.098") and 5.50mm OD (0.217").
The current rating is 5 A.
The termination style is solder eyelet(s).
No, the connector is unshielded.
No, it does not contain a switch.
The mounting type is free hanging (in-line).
