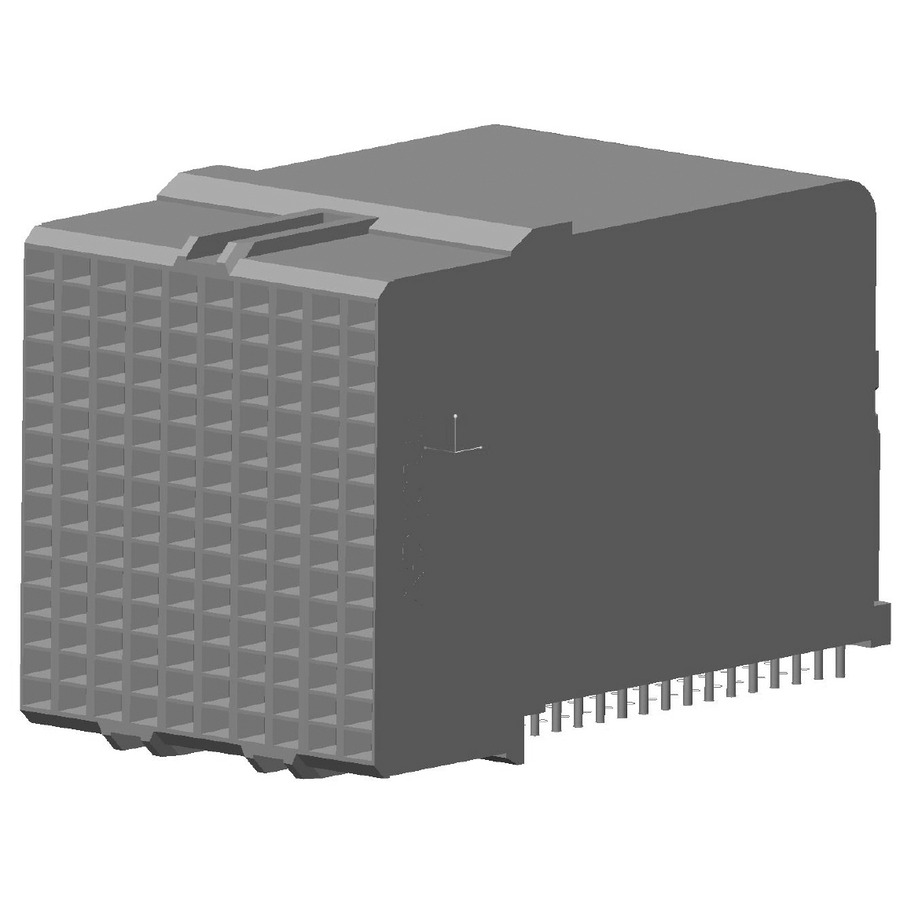

The Molex 76060-1020 is an Impact-series backplane connector configured as a receptacle with female sockets. It provides 150 positions arranged in 15 rows and 10 columns, supporting up to 50 differential pairs. The connector features a 1.35mm pitch, enabling high-density board-to-board interconnection in advanced backplane systems.
The receptacle is designed for press-fit termination, eliminating soldering and simplifying assembly. It is oriented for right-angle mounting and supports panel-mount and through-hole installation. Contacts are gold-plated to 30µin (0.76µm) for reliable, low-resistance connections. The black molded housing provides durable mechanical support.
Impact connectors are suited for high-speed differential signaling applications common in networking, telecommunications, and data storage equipment. The 15 by 10 layout and 50-pair capability allow dense routing while maintaining signal integrity. The press-fit design also supports rework and multiple mating cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.55 | $20.55 |
| 100+ | $20.23 | $20.23 |
| 210+ | $18.68 | $18.68 |
| 420+ | $17.32 | $17.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
150 positions.
1.35mm (0.053 inches).
Panel mount, through hole, and right angle.
50 differential pairs.
Press-fit.
30.0µin (0.76µm) gold.
15 rows and 10 columns.
