| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

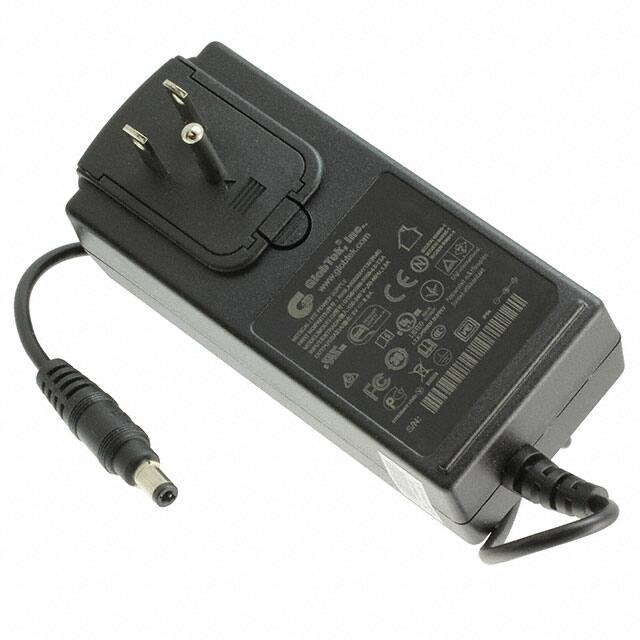

This Digi 76000965 AC/DC power adapter is designed for wall mounting and operates with a universal input voltage range of 100VAC to 240VAC, suitable for international use.
It delivers a stable 5VDC output with a maximum current of 6 Amps, providing up to 30 Watts of power. The adapter features a 2.5mm ID x 5.5mm OD locking barrel plug for secure connections.
Key specifications include an input frequency of 50 Hz to 60 Hz and an operating temperature range of 0°C to 40°C. The dimensions are 118 x 54 x 37 mm, and it comes with a 5ft cord. Certifications include UL, cUL, and CE, ensuring compliance with safety standards.
The input voltage range is 100-240 VAC at 50-60 Hz.
The operating temperature range is 0°C to 40°C.
The output is 5 VDC at 6 Amps, providing 30 Watts.
The adapter includes IEC 60320/C6 input and four interchangeable connectors: US, EU, UK, and AU.
The output connector is a 5.5mm OD x 2.5mm ID x 9.5mm locking-barrel plug.
The dimensions are 118mm x 54mm x 37mm (4.65" x 2.13" x 1.46").
