| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

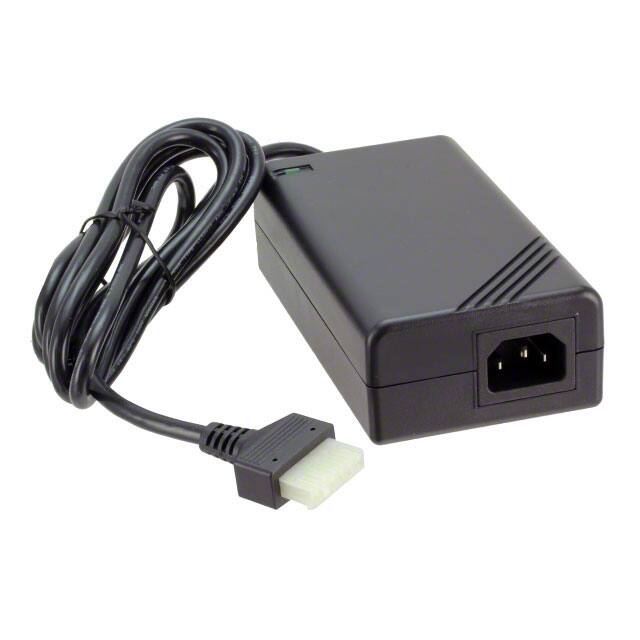

The Digi 76000914 is a versatile 43-watt AC/DC desktop power adapter designed for commercial ITE applications. It accepts a universal input voltage range of 100 to 240 VAC and operates across a frequency range of 47 to 63 Hz.
This power supply provides multiple output voltages, including +5V, +12V, and -12V, with maximum load currents of 5.0A, 1A, and 0.5A respectively. The output voltage tolerance is within -5% to +5% for the +5V and -12V outputs, and -10% to +10% for the +12V output. It boasts a minimum efficiency of 75% at maximum load and 220 VAC.
Key features include a maximum output power of 43 watts continuous, auto-recovery for over-voltage and short-circuit protection, and a hold-up time of 10ms minimum. The operating temperature range is from 0°C to 40°C. The adapter has dimensions of 140mm x 75mm x 41mm and weighs 500g. It utilizes an IEC 320 C14 input connector and has a cord length of 72 inches (1.83m).
Compliance includes CE, PSE, and UL approvals. The unit is RoHS3 compliant and has an MSL rating of 1.
The input voltage range is 100-240Vac (universal) with a rating of 90-254Vac.
It provides +5V at 5A, +12V at 1A, and -12V at 0.5A.
0°C to 40°C.
43 watts continuous.
Over-voltage protection with auto recovery and short circuit protection with automatic recovery.
140mm x 75mm x 41mm, weight 500g.
IEC 320 C14.
