| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Load Current | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

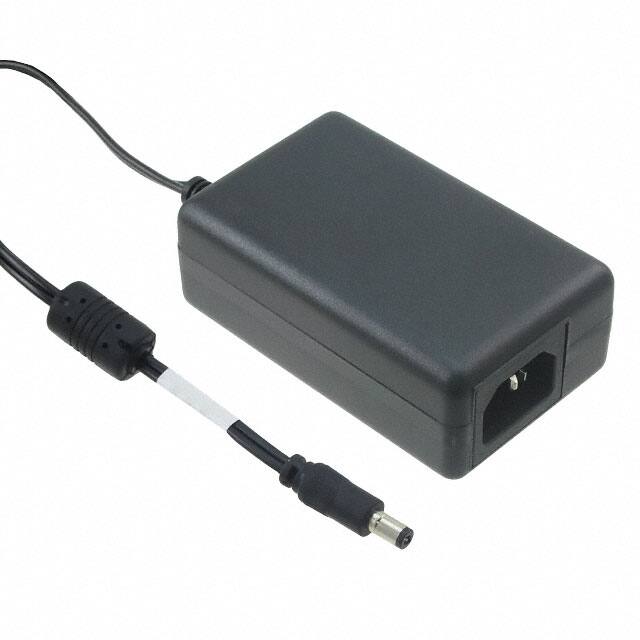

This AC/DC desktop power adapter, part number 76000788 from Digi, delivers a stable 12VDC output with a maximum continuous power of 12 watts. It is designed for universal use with a rated input voltage range of 100VAC to 240VAC and an input frequency of 47 Hz to 63 Hz.
The adapter utilizes an IEC320 C14 input connector and a locking barrel plug output (2.1mm I.D. x 5.5mm O.D.). It is built for demanding environments, offering an extended operating temperature range from -35°C to 74°C and a storage temperature range of -35°C to 85°C.
With dimensions of 93 x 57 x 34mm and a cord length of 4ft, this adapter is suitable for various applications. It carries UL, cUL, and CE certifications, indicating compliance with safety standards. The form factor is Desktop (Class I).
Compatibility includes devices such as Digi TransPort WR41, Digi TransPort WR21, and Digi Connect WAN 3G. The input connector is IEC 320-C14, and the output connector is a barrel plug with specific dimensions.
The 76000788 power adapter has an output voltage of 12VDC and a load current of 1.0A.
The maximum output power is 12 watts continuous.
The rated input voltage range is 100VAC to 240VAC.
The operating temperature range is -35°C to 74°C.
It uses an IEC320 C14 input plug and a Shogyo MP-121AR (9.5 x 5.5 x 2.1mm) locking barrel plug for output.
The RoHS Status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
