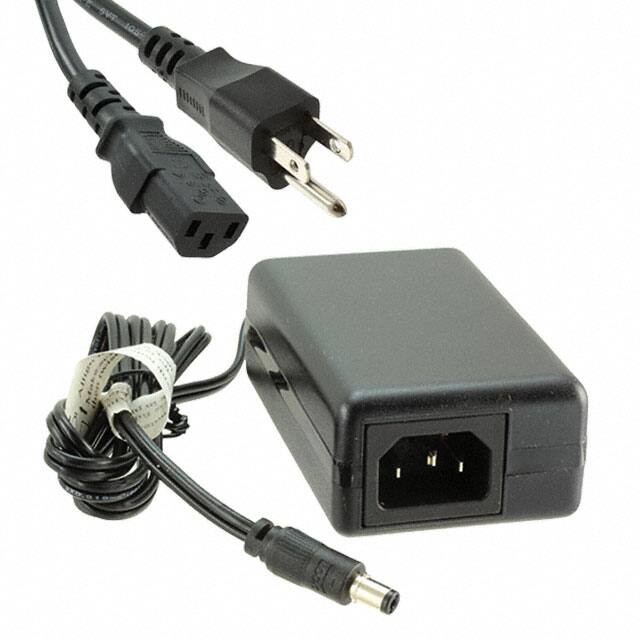

76000752 The Digi 76000752 is a 12W AC/DC desktop power adapter with a 12VDC output. It accepts a universal input voltage range of 100-240VAC.
Mfr Part #:

76000752

Mfr Name: Digi
Digi
The Digi 76000752 is a 12W AC/DC desktop power adapter with a 12VDC output. It accepts a universal input voltage range of 100-240VAC.
Stock on Request

76000752 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Cord Length
Current
Form
Height
Input Connector
Input Frequency
Input Type
Length
Load Current
Operating Temperature
Output Connector
Output Power
Output Voltage
Power (Watts)
Region Utilized
Storage Temperature
Voltage
Width
View Similar Products (0)

76000752 Description

Short technical summary and product information.

This Digi 76000752 is an AC/DC desktop power supply designed for reliable power conversion. It features a rated input voltage of 100VAC to 240VAC and an input frequency range of 47 Hz to 63 Hz, making it suitable for global use.



The adapter delivers a stable 12VDC output with a maximum load current of 1.0A, providing up to 12 watts of continuous power. The output is delivered via a 2.1mm locking barrel plug.



Designed for operational efficiency, it operates within an extended temperature range of -35°C to 74°C. The unit has a compact size of 93 x 57 x 34mm and comes with a 10ft cord. It is certified by UL, cUL, and CE, ensuring compliance with safety standards.

76000752 Quick Information

Product Type: AC DC Desktop, Wall Adapters
Canonical Name: AC/DC Desktop Power Supply
Subcategory: Desktop Power Supply

76000752 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

76000752 Features

  • 12VDC output voltage.
  • 12 watts maximum continuous power.
  • 100-240VAC universal input voltage.
  • NEMA 5-15P input plug.
  • 2.1mm locking barrel output plug.

76000752 Applications

  • Suitable for North American power regions.
  • Ideal for powering Digi TransPort WR41 devices.
  • Compatible with Digi Connect WAN models.
  • Used with PortServer TS H devices.

76000752 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the Digi 76000752?

100-240VAC, 47-63Hz.

What output voltage and current does it provide?

12VDC at 1A, 12W continuous.

What is the operating temperature range?

-35°C to 74°C.

What is the in-rush current?

25A max at 115VAC, 50A max at 230VAC.

What is the leakage current?

1.0 mA max at 230VAC.

What is the cord length?

10ft (3.05m).

What type of output connector does it have?

9.5 x 5.5 x 2.1mm locking barrel plug.
