| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Duration | |
| Form | |
| Input Connector | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Weight |

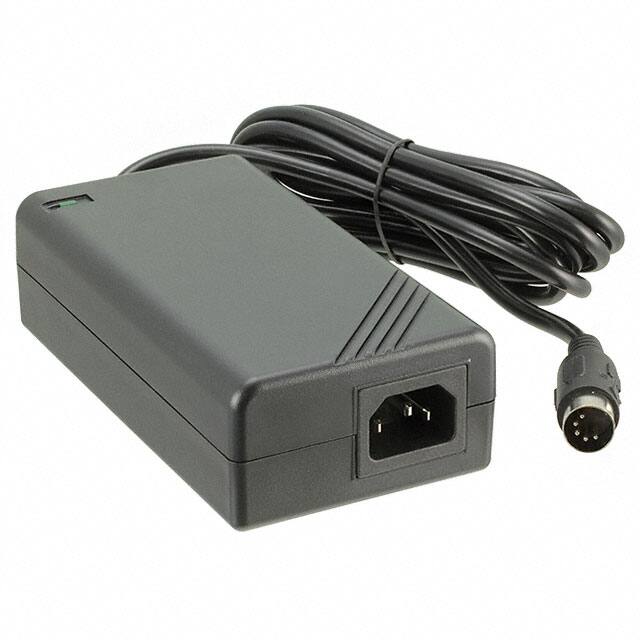

The Phihong USA PSA120U-560L6 is a versatile 120W AC/DC external desktop adapter designed for commercial ITE applications. It operates with an input voltage range of 90 to 264 VAC, providing a stable 56V output at a maximum current of 2.14A.
This adapter meets Efficiency Level VI and CoC Tier 2 standards, ensuring energy efficiency with a low no-load power consumption of 150mW maximum. It is designed for a 0°C to 40°C operating temperature range and features a compact desktop (Class I) form factor with dimensions of 5.98" L x 2.87" W x 1.46" H.
The output connector is a standard Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 10.0mm. The input connector is IEC 320-C14. The adapter comes with a 59" (1.50m) cord and is packaged in a box. It is RoHS compliant and REACH affected.
The adapter provides a 56V output voltage at a maximum current of 2.14A.
The adapter accepts an input voltage range of 90 to 264 VAC.
The adapter has a power rating of 120W.
The adapter operates within a temperature range of 0°C to 40°C.
It uses a Barrel Plug R/A connector with 2.5mm I.D. x 5.5mm O.D. x 10.0mm dimensions.
The adapter measures 5.98" L x 2.87" W x 1.46" H (152.0mm x 73.0mm x 37.0mm).
Yes, the adapter is RoHS Compliant.
