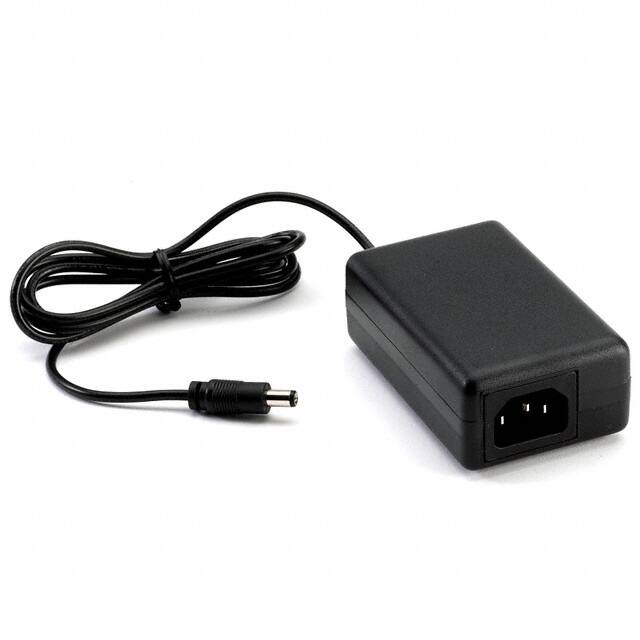

This AC/DC desktop adapter, part number 76000654 from Digi, delivers a stable 12VDC output with a maximum current of 1.5A, providing up to 18W of power. It is designed for international use, accepting a wide input voltage range of 100VAC to 240VAC at frequencies between 47Hz and 63Hz.
The adapter features an IEC320-C14 input connector and a standard 2.1mm non-locking barrel plug for the output. Its physical dimensions are 80.5mm in length, 50.0mm in width, and 30.0mm in height, with a cord length of 1.83 meters. The operating temperature range is from 0°C to 40°C.
Compliance certifications include UL, CSA, TUV, and CE, indicating adherence to safety and performance standards. The adapter is suitable for various applications requiring a reliable 12V power source. Its desktop form factor and through-hole mounting type facilitate integration into different system designs.
100-240VAC.
12VDC at 1.5A (18W).
0°C to 40°C.
2.1mm non-locking barrel plug.
IEC320-C14.
80.5 x 30 x 50mm (LxHxW).
1.83m (72 inches).
