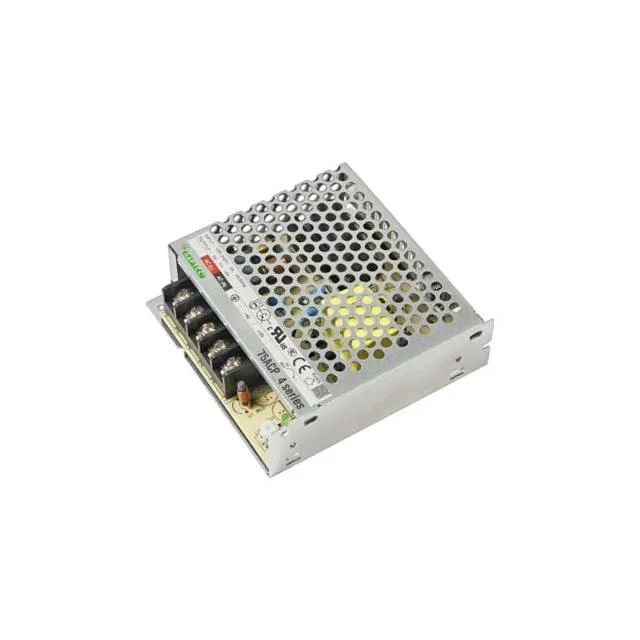

The GAPTEC Electronic 75ACPE_24S4 is a 77W AC/DC converter designed for various applications, including household appliances and commercial ITE equipment. It provides a stable 24VDC output at 3.2A with an efficiency of 90%.
This enclosed converter features a universal input voltage range of 85-264 VAC, making it suitable for global use. Its design includes adjustable output, DC input capability, and isolation voltage of 4 kV. The unit is chassis mounted for secure installation.
Key specifications include an operating temperature range of -30°C to 70°C with derating. The dimensions are 99.0mm x 97.0mm x 30.0mm. It is compliant with safety standards 60335-1 and 62368-1 and carries cURus and UL approval agency certifications.
85-264 VAC (also 120-373 VDC).
24 VDC at 3.2 A.
77 W.
-30°C to 70°C with derating.
4 kV.
Enclosed, chassis mount.
cURus and UL, compliant with 60335-1 and 62368-1.
