| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

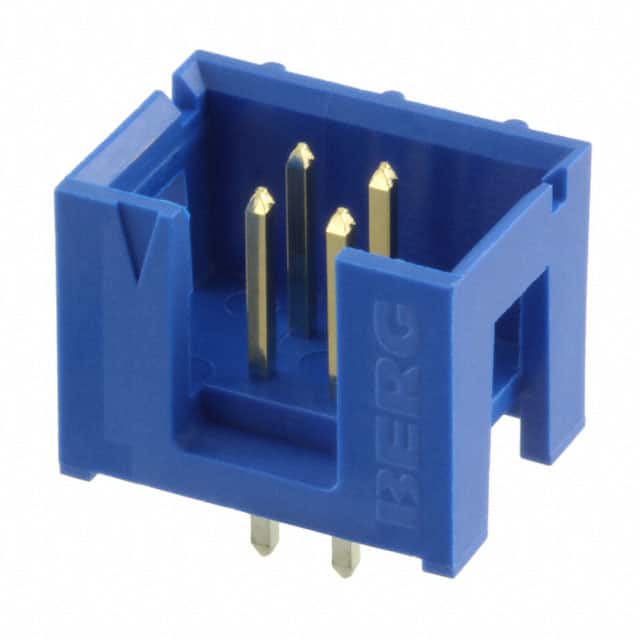

The 75869-330LF is a 4-position rectangular header connector manufactured by Amphenol ICC. It is designed for board-to-cable/wire applications with a 2.54mm pitch and 2.54mm row spacing. The connector features male pin contacts made of phosphor bronze with a tin finish (15.0µin thickness). The insulation is blue thermoplastic, glass filled, with a UL94 V-0 flammability rating. The header is shrouded with a 4-wall design and uses a push-pull fastening type. It includes a keying slot for alignment. Mounting is through hole with solder termination. The contact length is 6.00mm and insulation height is 9.57mm. This connector is suitable for various interconnection needs where a reliable, polarized connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.90 | $0.90 |
| 10+ | $0.76 | $0.76 |
| 100+ | $0.65 | $0.65 |
| 500+ | $0.58 | $0.58 |
| 1,000+ | $0.55 | $0.55 |
| 5,000+ | $0.49 | $0.49 |
| 10,000+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions.
The pitch is 2.54mm (0.100 inches).
Through hole with solder termination.
Phosphor bronze contacts with a tin finish of 15.0µin thickness.
Yes, it has a shrouded 4-wall design.
Thermoplastic, glass filled with UL94 V-0 rating.
Push-pull fastening.
