| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,403 pcs
|
1403 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

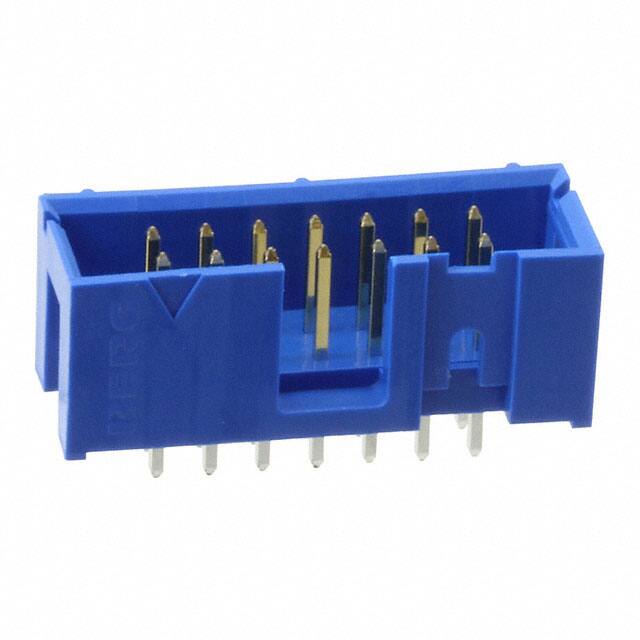

The Amphenol ICC 75869-302LF is a 14-position, 2-row header with a 2.54mm pitch, designed for through-hole mounting and solder termination. It features a shrouded 4-wall design with a keying slot to ensure correct mating orientation. The contacts are made of phosphor bronze with a tin finish (15.0µin thickness), providing reliable electrical performance. The insulation is blue glass-filled thermoplastic, rated UL94 V-0 for flammability. This header is suitable for board-to-cable/wire applications, offering a push-pull fastening type. The contact length is 6.00mm, and the insulation height is 9.57mm. All 14 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
| 23+ | $0.96 | $0.96 |
| 115+ | $0.86 | $0.86 |
| 506+ | $0.77 | $0.77 |
| 1,012+ | $0.73 | $0.73 |
| 5,014+ | $0.66 | $0.66 |
| 10,005+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions in 2 rows.
2.54mm (0.100")
Through hole with solder termination.
Tin, 15.0µin (0.38µm) thickness.
Thermoplastic, glass filled, blue color.
Yes, shrouded - 4 wall design with keying slot.
UL94 V-0.
