75869-301LF

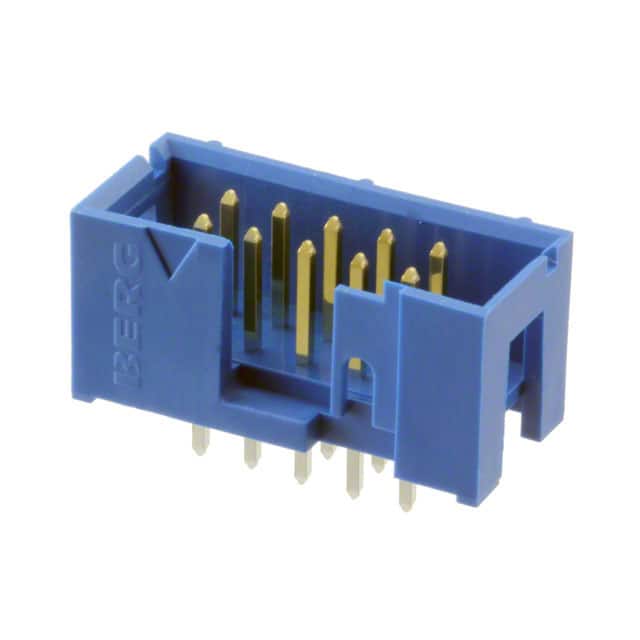

The 75869-301LF from Amphenol ICC is a 10-position, 2-row header connector designed for board-to-cable/wire applications. It features a shrouded 4-wall design to protect the male pins and ensure proper mating. The connector has a pitch of 2.54mm (0.100") and a row spacing of the same dimension, making it compatible with standard ribbon cable connectors. The through-hole mounting style with solder termination provides a reliable mechanical and electrical connection to the PCB. The contacts are made of phosphor bronze with a tin finish, offering good conductivity and corrosion resistance. The insulation material is a glass-filled thermoplastic, colored blue, with a UL94 V-0 flammability rating, suitable for use in environments requiring fire safety. The connector includes a keying slot to prevent misinsertion. The overall insulation height is 9.57mm, and the contact length is 6.00mm. This connector is commonly used in applications requiring secure, polarized connections, such as in industrial control systems, computer peripherals, and telecommunications equipment.
