| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,700 pcs
|
1700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

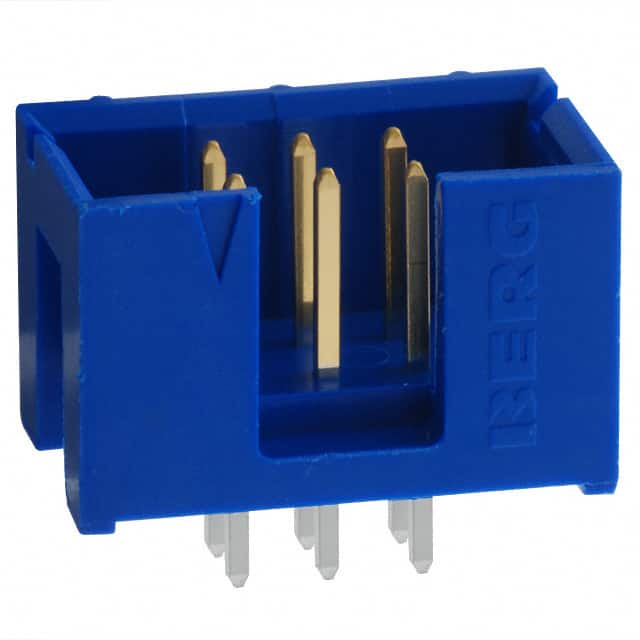

The Amphenol ICC 75869-131LF is a 6-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 2.54mm pitch and 2.54mm row spacing, making it compatible with standard 0.100" grid layouts. The connector uses through hole mounting with solder termination for reliable mechanical attachment.
The header is fully shrouded with a 4-wall design and includes a keying slot for polarization. Contacts are made of phosphor bronze with a tin finish (30µin thickness) and have a square shape. The insulation is blue thermoplastic, glass filled, rated UL94 V-0 for flammability. The insulation height is 9.57mm and contact length is 6.00mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.82 | $0.82 |
| 10+ | $0.70 | $0.70 |
| 100+ | $0.60 | $0.60 |
| 500+ | $0.53 | $0.53 |
| 1,000+ | $0.51 | $0.51 |
| 5,000+ | $0.45 | $0.45 |
| 10,000+ | $0.43 | $0.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions in 2 rows, all positions loaded.
2.54mm (0.100") with 2.54mm row spacing.
Through hole with solder termination.
Yes, it is a 4-wall shrouded header with push-pull fastening and a keying slot.
Phosphor bronze contacts with tin finish, 30µin (0.76µm) thickness.
UL94 V-0.
