| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
470 pcs
|
470 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

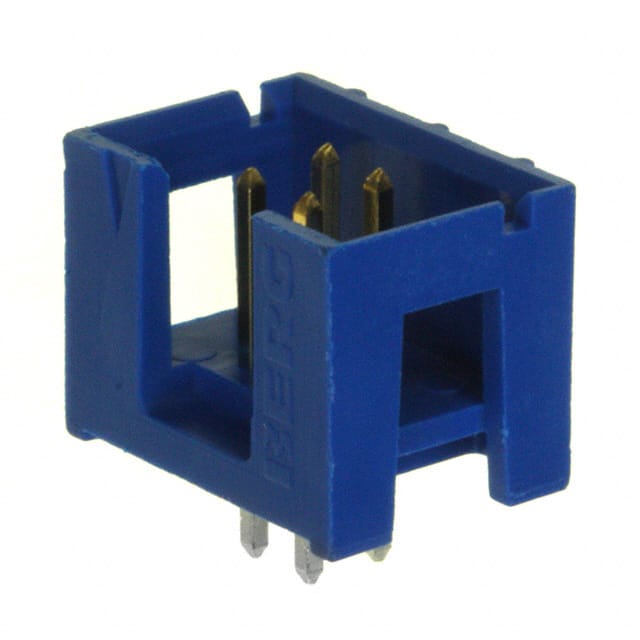

The 75869-130LF is a 4-position rectangular header connector from Amphenol ICC, designed for board-to-cable/wire applications. It features a 2.54mm pitch and 2 rows of male pins, with all positions loaded. The connector is shrouded with a 4-wall design and includes a keying slot for proper alignment. The housing is made of blue thermoplastic, glass-filled material with a UL94 V-0 flammability rating. Contacts are made of phosphor bronze with a tin finish of 30.0µin (0.76µm). The mounting type is through-hole with solder termination, and the fastening type is push-pull. The insulation height is 9.57mm, and contact length is 6.00mm. This connector is suitable for applications requiring a reliable, polarized connection in cable-to-board setups. The push-pull fastening allows easy mating and unmating. The keying slot ensures correct orientation. The glass-filled thermoplastic provides good mechanical and thermal properties. The material flammability rating of UL94 V-0 indicates flame retardancy. The connector is RoHS compliant (unverified) and REACH unaffected (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.87 | $0.87 |
| 10+ | $0.74 | $0.74 |
| 100+ | $0.63 | $0.63 |
| 800+ | $0.54 | $0.54 |
| 1,600+ | $0.52 | $0.52 |
| 5,600+ | $0.47 | $0.47 |
| 10,400+ | $0.45 | $0.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
2.54mm (0.100").
Through hole.
2 rows.
Tin.
Yes, it is shrouded with a 4-wall design.
UL94 V-0.
