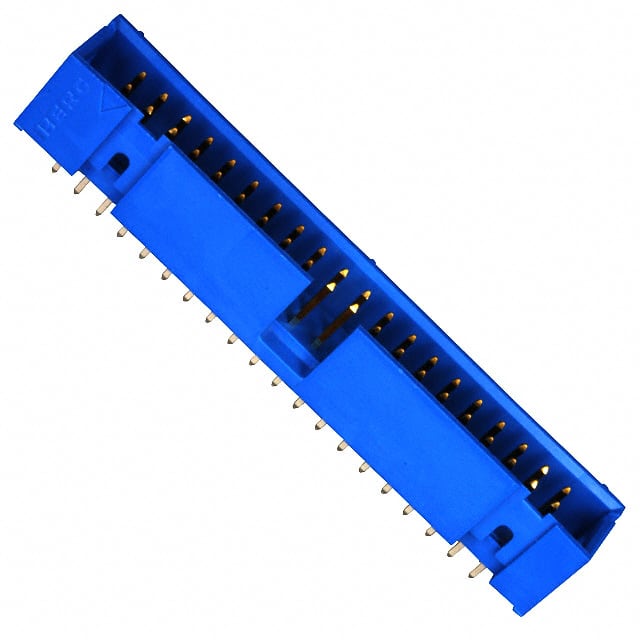

75869-107LF Amphenol ICC 75869-107LF is a 40-position, 2-row, 2.54mm pitch through hole header with male pins. It features a shrouded 4-wall design for board-to-cable/wire connections.
Mfr Part #:

75869-107LF

Available from 2 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Amphenol ICC 75869-107LF is a 40-position, 2-row, 2.54mm pitch through hole header with male pins. It features a shrouded 4-wall design for board-to-cable/wire connections.
✓ Total Stock: 1,562 pcs
$ Price Range: $1.73 - $3.15

75869-107LF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1,022 pcs
On Request
1022 pcs On Request 1 On Request On Request On Request On Request On Request
AA2DE ✓
Non-Authorised Inventory information
540 pcs
On Request
540 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

75869-107LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

75869-107LF Description

Short technical summary and product information.

The Amphenol ICC 75869-107LF is a 40-position, 2-row rectangular connector header with male pins. It has a pitch of 2.54mm (0.100") and row spacing of 2.54mm. The connector features a shrouded 4-wall design for enhanced mating guidance and protection.



Designed for board-to-cable/wire applications, this header uses through-hole mounting with solder termination. The contacts are made of phosphor bronze with a tin finish, and the insulation is blue thermoplastic, glass filled, rated UL94 V-0. The contact length is 6.00mm and insulation height is 9.57mm.



This header has a keying slot feature for proper alignment. It supports push-pull fastening. The contact finish thickness is 0.76µm (30µin). It is RoHS3 compliant and has MSL 1 unlimited.

75869-107LF Quick Information

Product Type: Header, Male Pins
Canonical Name: Amphenol ICC 75869-107LF 40 Position 2.54mm Pitch Through Hole Header, Male Pins
Subcategory: Shrouded Header, Male Pins

75869-107LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

75869-107LF Estimated Pricing

Qty Low High
1+ $3.15 $3.15
10+ $2.67 $2.67
100+ $2.27 $2.27
500+ $2.03 $2.03
1,000+ $1.93 $1.93
5,000+ $1.73 $1.73

Estimated market price range - modelled values for guidance only, not live distributor offers.

75869-107LF Features

  • 40 positions in 2 rows with 2.54mm pitch.
  • Shrouded 4-wall design for connector protection.
  • Through-hole mounting with solder termination.
  • Phosphor bronze contacts with tin finish.
  • UL94 V-0 rated glass-filled thermoplastic insulation.

75869-107LF Applications

  • Ideal for board-to-cable/wire interconnections.
  • Keying slot ensures correct insertion orientation.
  • Used in applications requiring high pin count.

75869-107LF FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 75869-107LF header have?

40 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the mounting type?

Through hole.

What is the row spacing?

2.54mm.

What is the contact finish?

Tin.

What is the insulation material?

Thermoplastic, glass filled, UL94 V-0.

Is this header shrouded?

Yes, it has a shrouded 4-wall design.
