| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,364 pcs
|
1364 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination |

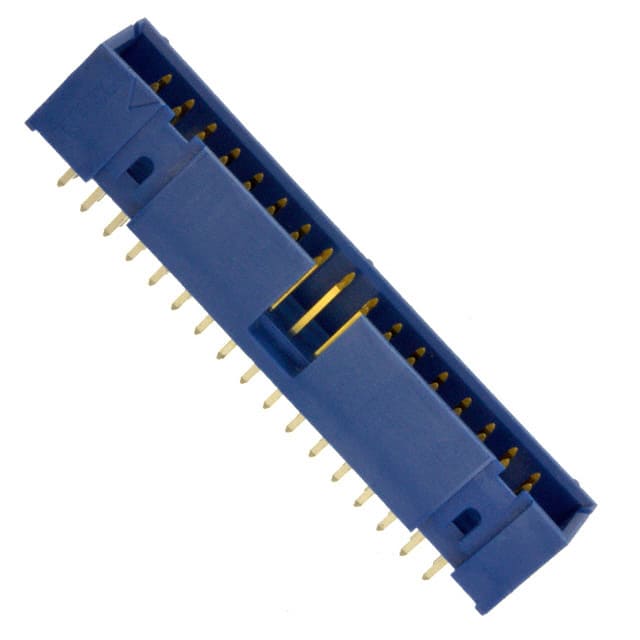

The Amphenol ICC 75869-106LF is a 34-position, 2-row shrouded header designed for board-to-cable/wire interconnections. It uses a 2.54mm (0.100") pitch and 0.100" row spacing, making it compatible with standard ribbon cable and IDC socket connectors.
The header features a 4-wall shrouded housing made of glass-filled thermoplastic with a UL94 V-0 flammability rating and a blue color. The contacts are phosphor bronze with a tin finish (30.0µin thickness) and a square pin shape. The insulation height is 9.57mm and the contact length is 6.00mm. A keying slot is included for polarization.
This component is through hole mounted and terminated by soldering. It uses a push-pull fastening type. The part is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.43 | $2.43 |
| 10+ | $2.07 | $2.07 |
| 330+ | $1.62 | $1.62 |
| 660+ | $1.54 | $1.54 |
| 1,320+ | $1.47 | $1.47 |
| 5,280+ | $1.33 | $1.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 75869-106LF has 34 positions in 2 rows, all positions loaded.
The pitch is 2.54mm (0.100") with a row spacing of 0.100" (2.54mm).
The mounting type is through hole with solder termination.
The contacts are phosphor bronze with a tin finish of 30.0µin (0.76µm).
Yes, it is a shrouded header with a 4-wall design.
The insulation is glass-filled thermoplastic with a UL94 V-0 flammability rating and blue color.
