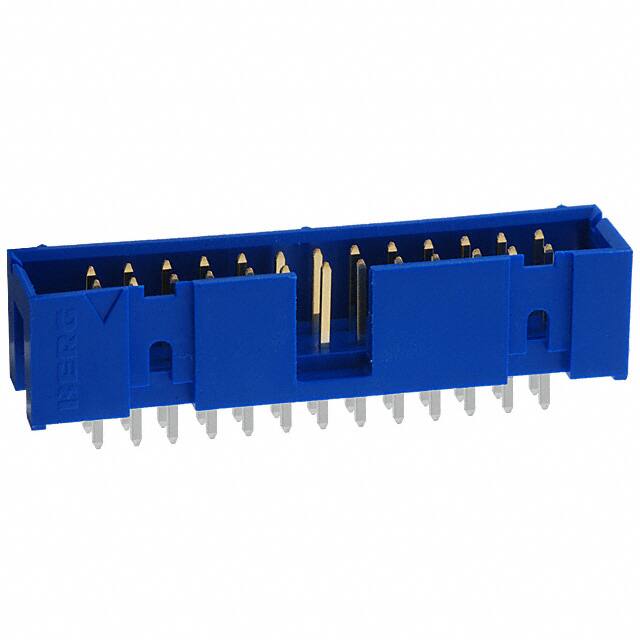

75869-105LF Amphenol ICC 75869-105LF is a 26 position, 2 row, 2.54mm pitch shrouded header with through hole solder termination and tin plated phosphor bronze contacts.
Mfr Part #:

75869-105LF

Available from 2 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Amphenol ICC 75869-105LF is a 26 position, 2 row, 2.54mm pitch shrouded header with through hole solder termination and tin plated phosphor bronze contacts.
✓ Total Stock: 1,344 pcs
$ Price Range: $1.15 - $2.10

75869-105LF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
952 pcs
On Request
952 pcs On Request 1 On Request On Request On Request On Request On Request
Husky International Electronic ✓
Non-Authorised Inventory information
392 pcs
On Request
392 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

75869-105LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

75869-105LF Description

Short technical summary and product information.

The Amphenol ICC 75869-105LF is a 26 position, 2 row, 2.54mm pitch shrouded header designed for board to cable/wire applications. It features a 4-wall shrouded housing with a push-pull fastening type and a keying slot for polarization. The header uses through hole solder termination and has square male pin contacts made of phosphor bronze with a tin finish (30.0µin thickness).



The insulation is a blue thermoplastic, glass filled material rated UL94 V-0 for flammability. The insulation height is 9.57mm and the contact length is 6.00mm. All 26 positions are loaded. This connector is suitable for applications requiring a reliable, polarized connection in a compact form factor.

75869-105LF Quick Information

Product Type: Header, Male Pins
Canonical Name: Amphenol ICC 75869-105LF 26 Position 2.54mm Pitch Shrouded Header
Subcategory: Shrouded Header

75869-105LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

75869-105LF Estimated Pricing

Qty Low High
1+ $2.10 $2.10
10+ $1.78 $1.78
40+ $1.87 $1.87
420+ $1.37 $1.37
840+ $1.31 $1.31
1,260+ $1.27 $1.27
5,040+ $1.15 $1.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

75869-105LF Features

  • 26 position 2 row shrouded header.
  • 2.54mm pitch with 0.100" row spacing.
  • Through hole solder termination.
  • Tin plated phosphor bronze contacts.
  • UL94 V-0 rated blue thermoplastic housing.

75869-105LF Applications

  • Board to cable/wire interconnect applications.
  • Requires polarized shrouded header connection.
  • Used in industrial and commercial electronics.

75869-105LF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the 75869-105LF?

2.54mm (0.100")

How many positions does the 75869-105LF have?

26 positions in 2 rows

What is the mounting type for this header?

Through hole with solder termination

Is the 75869-105LF shrouded?

Yes, it has a 4-wall shrouded housing

What is the contact material and finish?

Phosphor bronze contacts with 30.0µin tin finish

What is the insulation material and flammability rating?

Blue thermoplastic, glass filled, rated UL94 V-0
