75869-104LF Amphenol ICC 75869-104LF is a 20 position, 2 row, 2.54mm pitch through hole header with male pin contacts and a shrouded design.
Mfr Part #:

75869-104LF

Available from 3 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Amphenol ICC 75869-104LF is a 20 position, 2 row, 2.54mm pitch through hole header with male pin contacts and a shrouded design.
✓ Total Stock: 944 pcs
$ Price Range: $1.06 - $1.94

75869-104LF Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
882 pcs
On Request
882 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
59 pcs
On Request
59 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

75869-104LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Termination
View Similar Products (0)

75869-104LF Description

Short technical summary and product information.

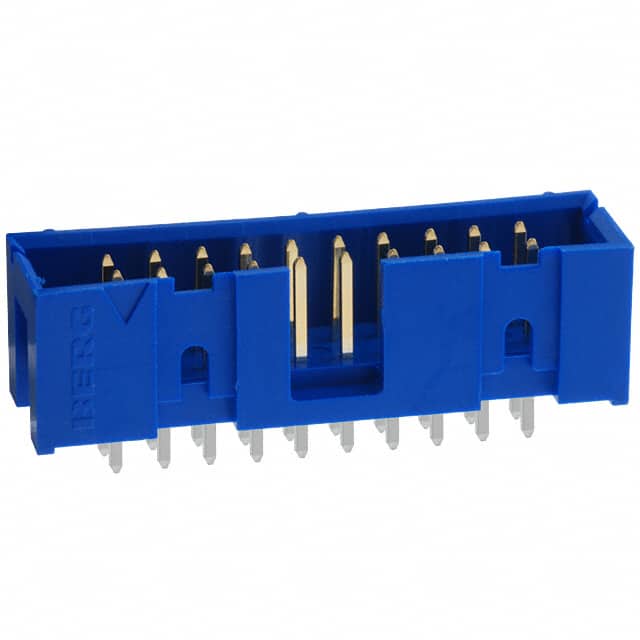

The Amphenol ICC 75869-104LF is a 20 position, 2 row, 2.54mm pitch through hole header designed for board to cable/wire applications. It features a shrouded 4-wall design with a push-pull fastening type and a keying slot for polarization.



The header uses male pin contacts made of phosphor bronze with a tin finish (30.0µin thickness). The insulation is a blue, glass-filled thermoplastic rated UL94 V-0. The insulation height is 9.57mm and the contact length is 6.00mm. All 20 positions are loaded.

75869-104LF Quick Information

Product Type: Header
Series: Quickie
Canonical Name: Amphenol ICC 75869-104LF 20 Position 2.54mm Pitch Through Hole Header
Subcategory: Headers, Male Pins

75869-104LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Yes

75869-104LF Estimated Pricing

Qty Low High
1+ $1.94 $1.94
10+ $1.65 $1.65
100+ $1.40 $1.40
540+ $1.25 $1.25
1,080+ $1.19 $1.19
5,400+ $1.06 $1.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

75869-104LF Features

  • 20 position 2.54mm pitch header.
  • Through hole mounting with solder termination.
  • Shrouded 4-wall design with keying slot.
  • Tin plated phosphor bronze contacts.
  • UL94 V-0 rated insulation material.

75869-104LF Applications

  • Board to cable/wire interconnections.
  • Internal wiring in electronic assemblies.
  • Industrial control and automation systems.
  • Consumer electronics and peripherals.

75869-104LF FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 75869-104LF have?

20 positions, all loaded.

What is the pitch of this header?

2.54mm (0.100").

What is the mounting type for the 75869-104LF?

Through hole with solder termination.

What is the contact finish on this header?

Tin, 30.0µin (0.76µm) thickness.

What is the insulation material and flammability rating?

Glass-filled thermoplastic, UL94 V-0 rated.
