| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,764 pcs
|
1764 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

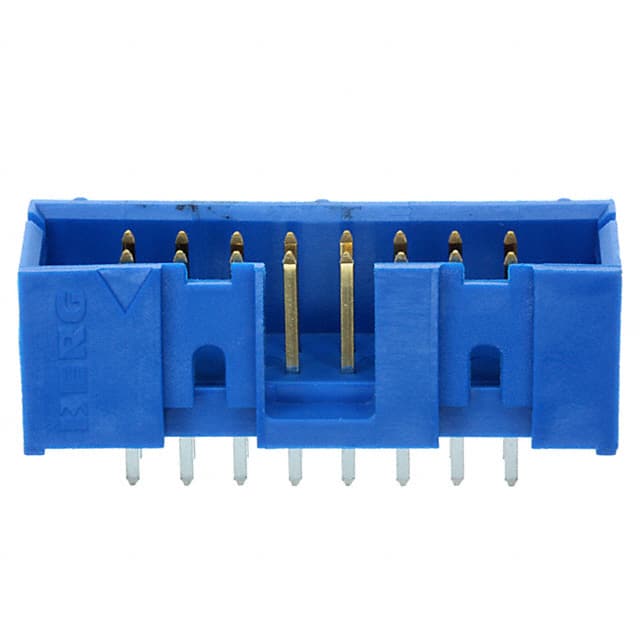

The Amphenol ICC 75869-103LF is a 16 position, 2 row, 2.54mm pitch shrouded header designed for board to cable/wire applications. This through hole connector features male square pins with a Tin contact finish (30µin thickness) over phosphor bronze base material, ensuring reliable conductivity and corrosion resistance.
The header is fully shrouded with a 4-wall design, providing protection for the contacts and aiding in alignment during mating. The insulation is made from blue glass filled thermoplastic with a UL94 V-0 flammability rating, suitable for use in environments requiring flame retardant materials. A keying slot is included to prevent mis-mating.
Mechanical specifications include a 9.57mm insulation height, 6.00mm contact length, and push-pull fastening type. The component is designed for through hole mounting with solder termination, making it compatible with standard PCB assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.17 | $2.17 |
| 10+ | $1.84 | $1.84 |
| 100+ | $1.57 | $1.57 |
| 630+ | $1.38 | $1.38 |
| 1,260+ | $1.31 | $1.31 |
| 5,040+ | $1.19 | $1.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions, all loaded, arranged in 2 rows.
2.54mm (0.100")
Through hole.
Tin with 30.0µin (0.76µm) thickness.
Yes, it is a 4-wall shrouded header.
Thermoplastic, glass filled, blue color, rated UL94 V-0.
Push-pull.
