| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,035 pcs
|
1035 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
112 pcs
|
112 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

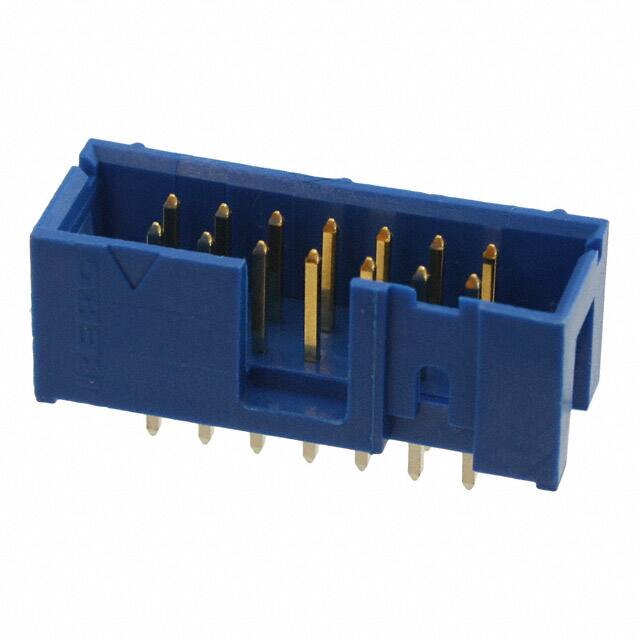

The 75869-102LF is a 14-position, 2-row rectangular header from Amphenol ICC designed for board-to-cable/wire connections. It uses a 2.54mm pitch and 2.54mm row spacing, with all 14 positions loaded. The connector is shrouded with a 4-wall design and push-pull fastening, including a keying slot for correct orientation.
Mechanically, the header is through-hole mounted with solder termination. The contacts are square pins made of phosphor bronze with a tin finish (30.0µin thickness). The contact length is 6.00mm. The insulator is blue thermoplastic, glass filled, with a height of 9.57mm. The material meets UL94 V-0 flammability rating.
This part is suitable for internal wiring applications requiring a reliable, polarized connection. The shrouded design protects pins and aids alignment during mating. No current or voltage ratings are specified in available data. Compliance with RoHS and REACH is unverified, and MSL is rated as level 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.46 | $2.46 |
| 10+ | $2.09 | $2.09 |
| 100+ | $1.77 | $1.77 |
| 690+ | $1.55 | $1.55 |
| 1,380+ | $1.47 | $1.47 |
| 5,520+ | $1.34 | $1.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 14 positions, all loaded.
The pitch is 2.54mm (0.100").
Through hole mounting with solder termination.
Yes, it has a shrouded 4-wall design.
Phosphor bronze with tin plating, thickness 30.0µin (0.76µm).
Thermoplastic, glass filled, color blue, rated UL94 V-0.
Push-pull.
