| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,800 pcs
|
3800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

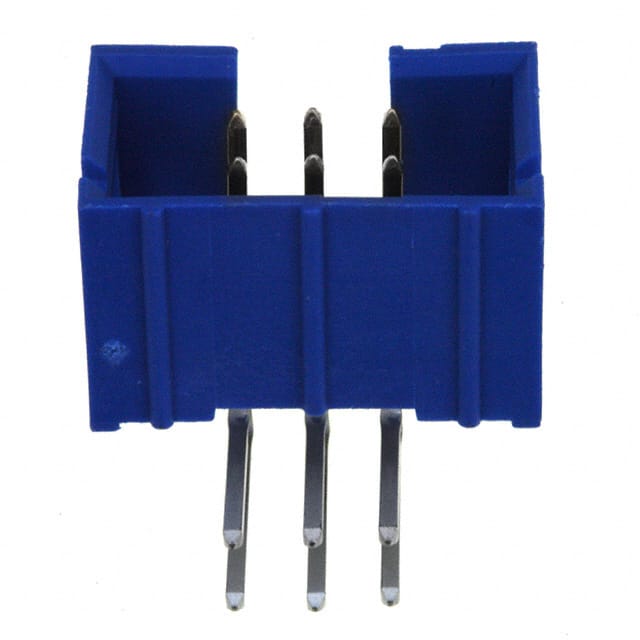

The 75867-131LF is a 6-position, 2-row right-angle shrouded header from Amphenol ICC. It features a 2.54mm pitch and is designed for through-hole soldering. The connector includes a 4-wall shrouded housing with a keying slot for polarization, and a push-pull fastening mechanism. The insulator is made of blue thermoplastic, glass filled, with a UL94 V-0 flammability rating. Contacts are phosphor bronze with a tin finish, providing reliable electrical performance. This header is suitable for board-to-cable/wire applications in industrial, consumer, and data communication systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.05 | $1.05 |
| 10+ | $0.89 | $0.89 |
| 100+ | $0.76 | $0.76 |
| 800+ | $0.65 | $0.65 |
| 1,600+ | $0.62 | $0.62 |
| 5,600+ | $0.57 | $0.57 |
| 10,400+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions arranged in 2 rows.
2.54mm (0.100")
Through hole, right angle.
Yes, it has a shrouded 4-wall design.
Phosphor bronze contacts with tin finish (30.0µin thickness).
Thermoplastic, glass filled, rated UL94 V-0.
Board to cable/wire.
