| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
522 pcs
|
522 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

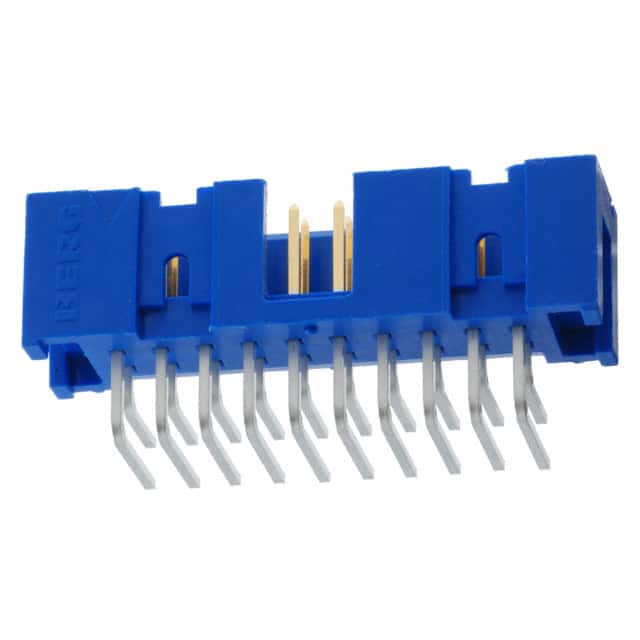

The Amphenol ICC 75867-104LF is a 20-position male pin header connector designed for board-to-cable/wire applications. It has a 2.54mm pitch and 2 rows with all positions loaded. The connector is shrouded with a 4-wall design and includes a keying slot for polarization. The right-angle orientation allows for low-profile connections perpendicular to the PCB. Through-hole mounting with solder termination ensures reliable mechanical attachment.
Insulation is made of glass-filled thermoplastic with a blue color and UL94 V-0 flammability rating. Contacts are square phosphor bronze with a tin finish of 30µin thickness. Contact length is 6.00mm and insulation height is 9.20mm. Push-pull fastening enables easy mating and unmating.
The component is RoHS and REACH compliant with an MSL of 1 (unlimited). Suitable for use in industrial control, data communication, and consumer electronics requiring reliable wire-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.82 | $1.82 |
| 10+ | $1.54 | $1.54 |
| 100+ | $1.31 | $1.31 |
| 540+ | $1.17 | $1.17 |
| 1,080+ | $1.11 | $1.11 |
| 5,400+ | $0.99 | $0.99 |
| 10,260+ | $0.95 | $0.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions arranged in 2 rows.
2.54mm (0.100 inches).
Through hole, right angle.
Tin with 30µin thickness.
Yes, it has a shrouded 4-wall design.
Thermoplastic, glass filled with UL94 V-0 rating.
Push-pull.
