| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,150 pcs
|
1150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
69 pcs
|
69 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

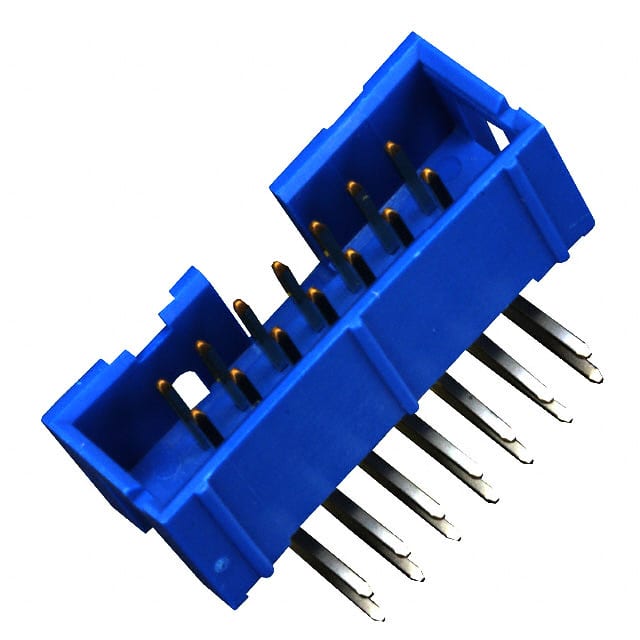

The Amphenol ICC 75867-102LF is a 14-position rectangular connector header designed for board-to-cable/wire interconnects. It features two rows of male pin contacts at a standard 2.54mm pitch with a matching 2.54mm row spacing.
The header is shrouded with a 4-wall design and a push-pull fastening mechanism, providing robust mating guidance and protection. It uses through-hole, right-angle mounting with solder termination for secure PCB attachment. The insulation is made of blue glass-filled thermoplastic with a UL94 V-0 flammability rating.
Contacts are square male pins made of phosphor bronze with a tin finish (0.76µm thickness). The contact length is 6.00mm and the insulation height is 9.20mm. A keying slot feature is included to prevent mis-mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.55 | $1.55 |
| 23+ | $1.24 | $1.24 |
| 115+ | $1.11 | $1.11 |
| 506+ | $1.00 | $1.00 |
| 1,012+ | $0.95 | $0.95 |
| 5,014+ | $0.85 | $0.85 |
| 10,005+ | $0.81 | $0.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 14 positions in 2 rows.
The pitch is 2.54mm with the same row spacing.
Through-hole, right-angle mounting with solder termination.
Yes, it has a 4-wall shrouded design with push-pull fastening.
