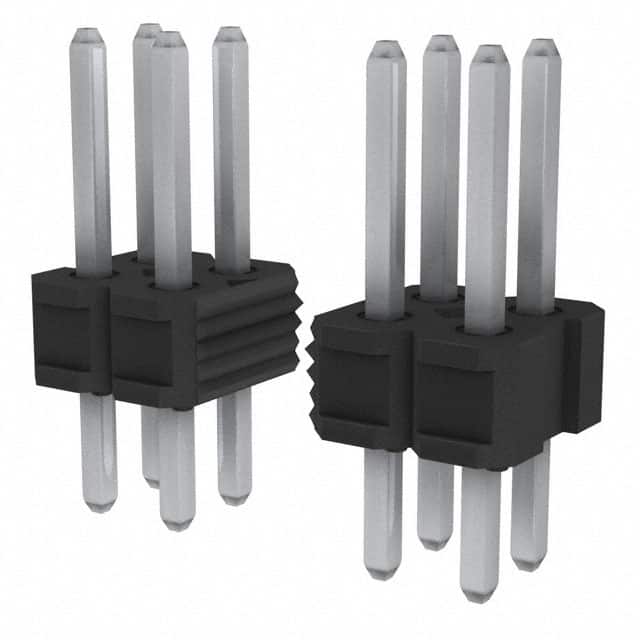

The Amphenol ICC 75844-302-10LF is a 10-position unshrouded breakaway header designed for board-to-board or cable applications. It features a 2.54mm pitch and 2 rows of male pin contacts with a square contact shape. The connector is through-hole mounted with solder termination.
Key specifications include a current rating of 5A and a voltage rating of 110V. The operating temperature range is -65°C to 130°C. The insulator is black thermoplastic with a UL94 V-0 flammability rating. Contact finish is tin with a thickness of 150µin (3.81µm) over phosphor bronze base material.
The overall contact length is 0.465" (11.81mm) with a mating contact length of 5.84mm (0.230"). Insulation height is 2.54mm (0.100"). The connector uses a push-pull fastening type and all 10 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 150+ | $0.59 | $0.59 |
| 500+ | $0.61 | $0.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in 2 rows.
2.54mm (0.100").
5A.
110V.
Through hole with solder termination.
-65°C to 130°C.
Tin, 150µin (3.81µm) thick.
