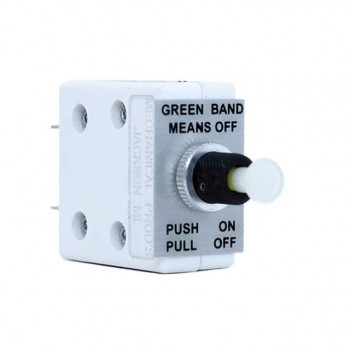

752-001-200-H7 The Mechanical Products 752-001-200-H7 is a 1-pole, thermal circuit breaker with a 20A current rating and 120VAC voltage rating. It features a push-pull actuator and is panel mountable.
Mfr Part #:

752-001-200-H7

Mfr Name: Mechanical Products
Mechanical Products
The Mechanical Products 752-001-200-H7 is a 1-pole, thermal circuit breaker with a 20A current rating and 120VAC voltage rating. It features a push-pull actuator and is panel mountable.
Stock on Request

752-001-200-H7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

752-001-200-H7 Description

Short technical summary and product information.

This Mechanical Products Series 07 circuit breaker, part number 752-001-200-H7, is a thermal type breaker designed for reliable circuit protection. It offers a 20A current rating and a maximum voltage rating of 120VAC, suitable for branch circuit protection per UL489.



The breaker features a single pole configuration and a convenient push-pull actuator for operation. It is designed for panel mounting, making it versatile for various equipment and system integrations. The unit is built to withstand short circuit conditions up to 5kA.



Key specifications include a 1500VAC dielectric strength and a typical voltage drop of 0.25V at 15-20A. The breaker also meets multiple regulatory approvals, including UL, CSA, VDE, and CCC, ensuring compliance across different regions.



Environmental compliance includes RoHS3 status and MSL 1 rating. The cadmium-free construction aligns with environmental standards.

752-001-200-H7 Quick Information

Product Type: Circuit Breaker
Series: 07
Canonical Name: Mechanical Products Series 07 Thermal Circuit Breaker, 20A, 120VAC, 1-Pole, Push-Pull Actuator
Subcategory: Thermal Circuit Breaker

752-001-200-H7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

752-001-200-H7 Features

  • Rated for 20A at 120VAC operation.
  • Single-pole thermal circuit breaker design.
  • Push-pull actuator for manual reset.
  • High inrush capacity of 35X rated current.
  • Panel mount installation for easy integration.

752-001-200-H7 Applications

  • Branch circuit protection for 20A loads
  • Industrial control panel overcurrent protection
  • Power distribution unit short circuit protection
  • Commercial lighting and appliance protection
  • Automotive auxiliary circuit breaker application

752-001-200-H7 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the 752-001-200-H7?

The current rating is 20A.

What is the voltage rating of the 752-001-200-H7?

The voltage rating is 120VAC.

What type of actuator does this circuit breaker use?

It uses a push-pull actuator.

What is the interrupt capacity of this breaker?

The interrupt capacity is 5000A at 120VAC per UL489.

What is the mounting type for the 752-001-200-H7?

The mounting type is panel mount.
