| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

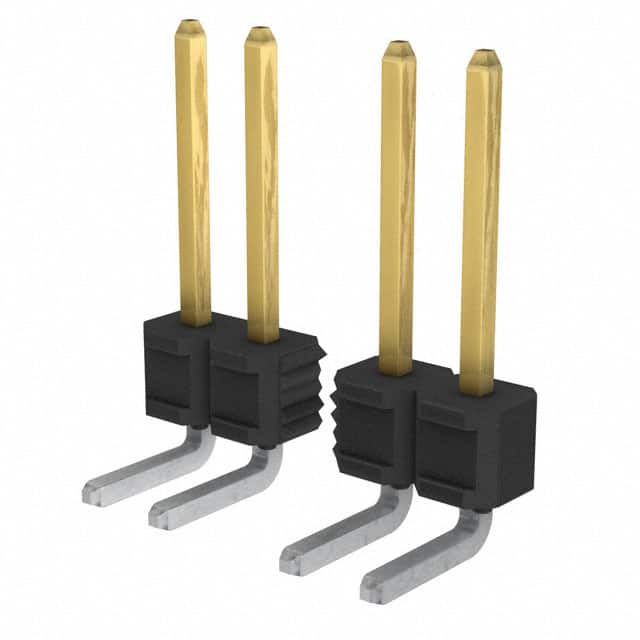

The Amphenol ICC 75168-116-36LF is a 36 position single row unshrouded male pin header designed for board-to-board applications. It features a 2.54mm pitch and a through hole right angle mounting style, making it suitable for perpendicular PCB connections.
The header uses phosphor bronze contacts with a gold GXT finish (0.76µm thickness) for reliable conductivity and corrosion resistance. The black thermoplastic insulator is rated UL94 V-0 for flammability. The push-pull fastening type and square contact shape ensure secure mating.
With an insulation height of 2.79mm and a contact length of 8.51mm, this connector is optimized for standard PCB thicknesses. All 36 positions are loaded, providing full signal or power routing capability in a compact single-row layout.
| Qty | Low | High |
|---|---|---|
| 100+ | $4.79 | $4.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 36 positions, all loaded, in a single row.
The pitch is 2.54mm (0.100 inches).
Through hole, right angle with solder termination.
Gold, GXT with a thickness of 0.76µm.
It is unshrouded.
Black thermoplastic rated UL94 V-0.
