| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

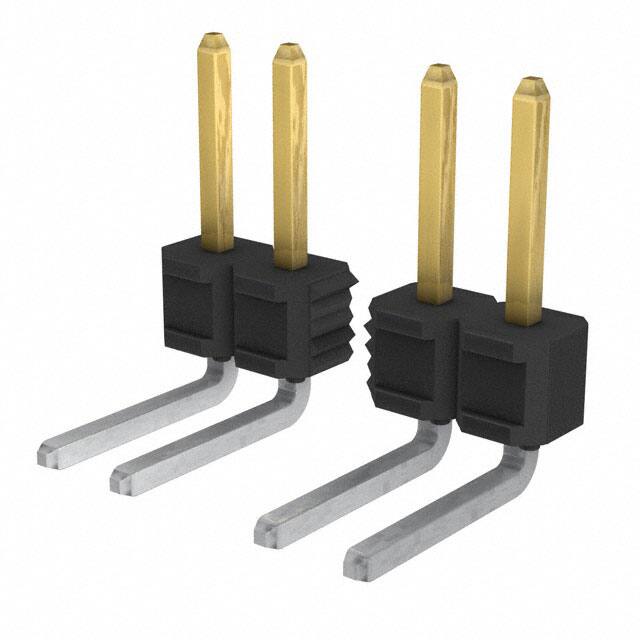

The 75168-102-36LF from Amphenol ICC is a 36-position single row unshrouded header designed for board-to-board applications. It features a right angle through hole mounting with solder termination, making it suitable for compact PCB layouts. The contact material is phosphor bronze with a Gold GXT finish (30µin thickness) for reliable connectivity. The thermoplastic insulation is rated UL94 V-0, ensuring flame retardancy. The header has a pitch of 2.54mm (0.100") and an insulation height of 2.79mm (0.110"). The contact length is 5.72mm (0.225"). The fastening type is push-pull for easy connection. This component is RoHS3 compliant, REACH unaffected, and has an MSL of 1. It is unshrouded, allowing for low-profile mating. The single row configuration with 36 positions provides a compact yet high-density interconnect solution.
| Qty | Low | High |
|---|---|---|
| 100+ | $8.79 | $8.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36 positions.
2.54mm (0.100").
Through Hole, Right Angle.
Gold GXT with 30µin (0.76µm) thickness.
Thermoplastic with UL94 V-0 flammability rating.
Unshrouded.
Push-Pull.
