| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

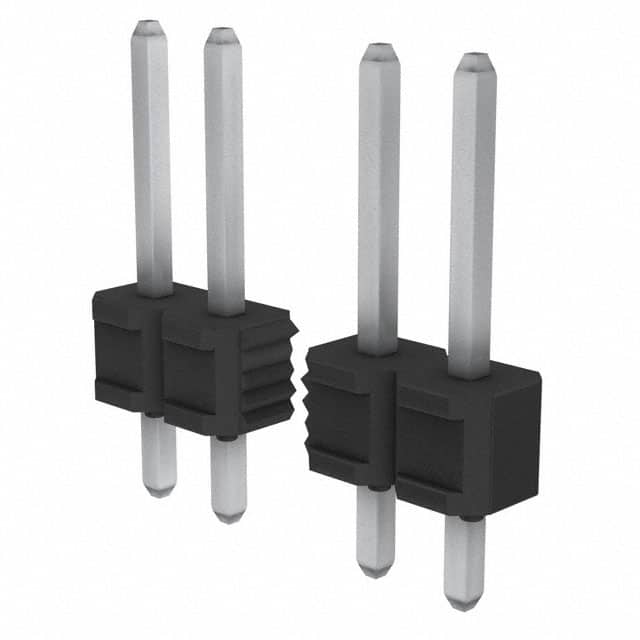

The Amphenol ICC 75160-327-36LF is a 36-position, single-row unshrouded male pin header designed for board-to-board applications. Featuring a 2.54mm (0.100") pitch, this connector provides a reliable interconnection with through hole mounting and solder termination.
The header is constructed with phosphor bronze contacts finished in tin (2.00µm thickness) and a black thermoplastic insulator. It is rated for 5A current and 110V with an operating temperature range of -65°C to 130°C. The contact shape is square, with a mating contact length of 6.60mm and an overall contact length of 11.81mm. The insulation height is 2.54mm.
This connector is suitable for general-purpose board stacking and wire-to-board connections where a compact, low-profile unshrouded header is required. The insulation material has a UL94 V-0 flammability rating.
| Qty | Low | High |
|---|---|---|
| 100+ | $3.39 | $3.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36 positions, all loaded, in a single row.
2.54mm (0.100").
5A.
110V.
Through hole.
-65°C to 130°C.
Unshrouded.
