Mfr Part #:

750316878

Name: 750316878
Brand: Würth Elektronik
SKU: 750316878

Mfr Name: Würth Elektronik

Description:

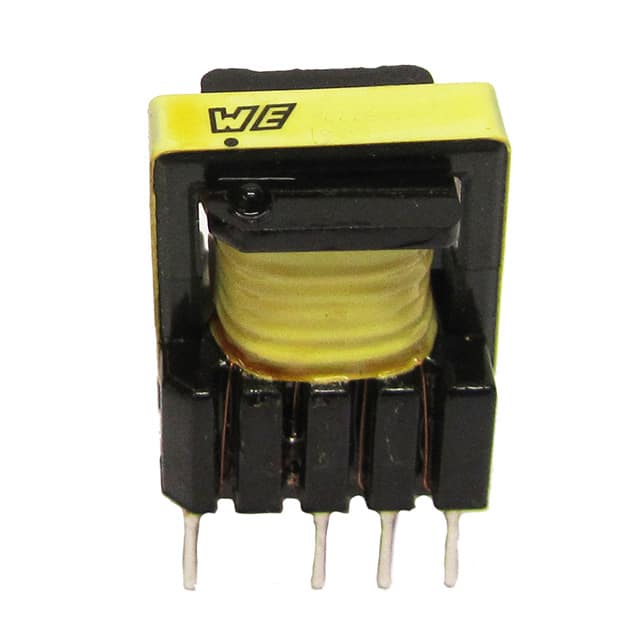

OFFLINE TRANSFORMER EE16/7/5 THT

Stock on Request

750316878 Description

Short technical summary and product information.

OFFLINE TRANSFORMER EE16/7/5 THT

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Switching Converter, SMPS Transformers
Manufacturer Name	Würth Elektronik
Applications	Flyback Converters
Chipset Manufacturer	STMicroelectronics
Footprint	0.555" L x 0.456" W (14.10mm x 11.58mm)
Frequency	80kHz
Height	0.888" (22.55mm)
Inductance @ Frequency	2.2mH @ 100kHz
Mounting Type	Through Hole
Operating Temperature	-40°C ~ 125°C
Size	0.545" L x 0.701" W (13.84mm x 17.81mm)
Style	Wirewound
Type	For DC/DC Converters
Voltage	15V @ 10mA
