| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
980 pcs
|
980 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature |

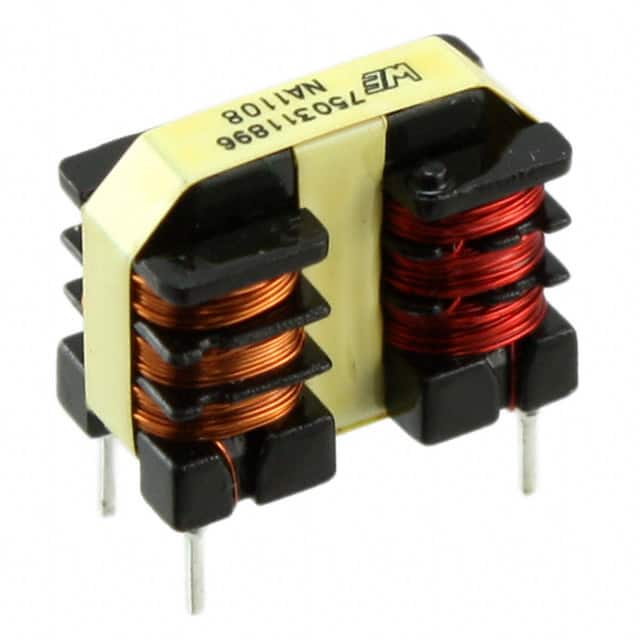

The Würth Elektronik 750311896 is a common mode choke designed for filtering common mode noise in power and signal lines. It provides 10 mH inductance measured at 10 kHz, with a maximum current rating of 370 mA and a maximum DC resistance of 2.5 Ohm. The component features two lines, making it suitable for differential pair filtering applications.
The choke is housed in a vertical, 4-pin through-hole package measuring 15.75 mm in length and 8.71 mm in width, with a maximum height of 13.60 mm. This compact form factor is well-suited for PCB designs where space is constrained. The through-hole mounting ensures reliable mechanical attachment and ease of assembly in traditional manufacturing processes.
With an operating temperature range of -40°C to 125°C, this component is suitable for a wide variety of environments, including industrial and automotive applications. The component is RoHS3 compliant and REACH unaffected, supporting environmentally conscious design requirements.
This common mode choke is ideal for EMI filtering in power supplies, data communication interfaces, and other circuits where common mode noise suppression is critical. Its electrical characteristics make it a practical choice for engineers seeking effective noise filtering with reliable performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.44 | $3.44 |
| 10+ | $2.83 | $2.83 |
| 25+ | $2.56 | $2.56 |
| 50+ | $2.48 | $2.48 |
| 100+ | $2.27 | $2.27 |
| 280+ | $2.13 | $2.13 |
| 560+ | $2.00 | $2.00 |
| 1,120+ | $1.85 | $1.85 |
| 2,520+ | $1.78 | $1.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 10 mH, measured at 10 kHz.
The maximum current rating is 370 mA.
The maximum DC resistance is 2.5 Ohm.
This choke has 2 lines.
The operating temperature range is -40°C to 125°C.
It is a through-hole component with a vertical, 4-pin package.
The component is marked as RoHS3 compliant, though this is unverified and should be confirmed with official documentation.
