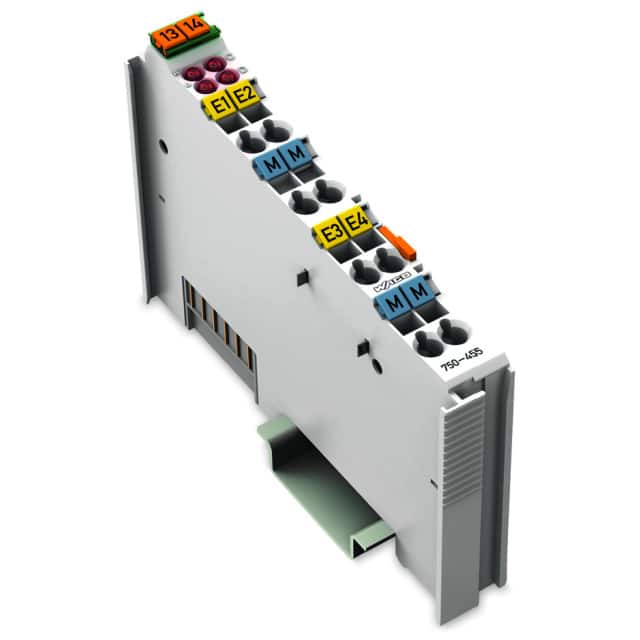

The Wago 750-455 is a 4-channel analog input module designed for processing standard 4-20 mA current signals. It features single-ended input channels with a common ground potential and provides 12-bit resolution for accurate signal conversion. The module is electrically isolated between system and field, with an isolation voltage of 500 V.
Each channel supports 2-wire sensor connections and offers a maximum input voltage of 32 V. The module has a typical conversion time of 10 ms and a maximum measurement error of 0.1% of the upper-range value at 25 °C. The internal system supply powers the module via 5 VDC, while the field supply is provided through power jumper contacts at 24 VDC.
The module uses CAGE CLAMP spring terminal connections for secure wiring and mounts on a DIN-35 rail. It has a compact footprint of 12 mm width, 100 mm height, and 69.8 mm depth, making it suitable for space-constrained industrial control cabinets.
It accepts single-ended 4-20 mA current signals on 4 channels using 2-wire sensor connections.
The system supply via data contacts is 5 VDC, and the field supply via power jumper contacts is 24 VDC (-25…+30%).
Each input has 12-bit resolution, with a typical conversion time of 10 ms.
The maximum measurement error is 0.1% of upper-range value at 25°C, with a maximum temperature error of 0.01%/K.
It mounts on a DIN-35 rail and uses 8 CAGE CLAMP spring terminals for connections. Conductors from 0.08 to 2.5 mm² (28 to 14 AWG) are accepted.
The module measures 12 mm wide, 100 mm high, and 69.8 mm deep. Depth from the upper edge of the DIN-rail is 62.6 mm.
Existing data indicates the product is RoHS3 compliant, although this status was not independently verified.
