| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| For Use With | |
| Lead Style | |
| Mounting Type | |
| SVHC Present | |
| Termination Style | |
| Type | |
| Voltage |

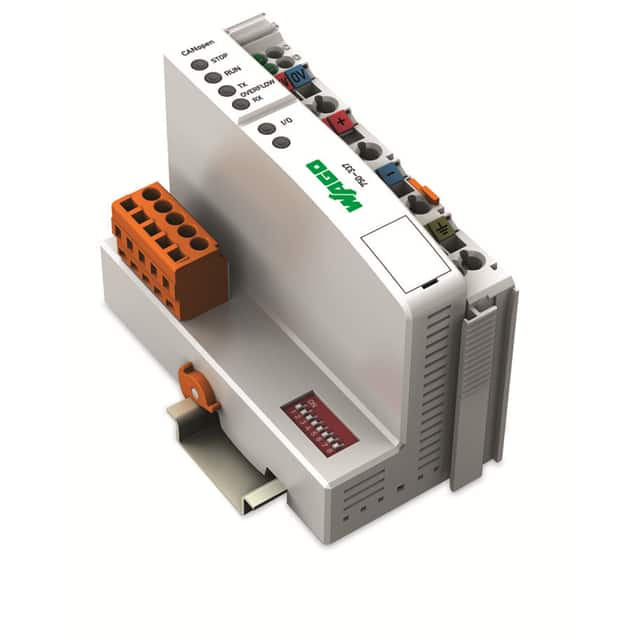

The Wago 750-337 is a fieldbus coupler that connects the WAGO I/O System as a slave to the CANopen fieldbus. Data is transmitted via PDOs and SDOs. The coupler detects all connected I/O modules and creates a local process image, with analog data sent as words or bytes and digital data bit by bit.
The local process image is divided into two data zones containing received and transmitted data. Process data can be sent over the CANopen bus to a control system. Up to 64 I/O modules per node are supported, with a maximum bus segment length of 1000 m at 10/1 MBd baud rate. The unit features a DIP switch for node ID distribution and complies with communication profile DS-301 V4.1 and device profile DS-401 V2.0.
Electrical characteristics include a nominal supply voltage of 24 VDC and typical input current of 500 mA at nominal load. The coupler mounts on a DIN rail and uses CAGE CLAMP spring terminals for connections. Color is light gray.
The nominal system supply voltage is 24 VDC with a tolerance of -25% to +30% (approximately 18 to 31.2 VDC).
It supports CANopen with communication profile DS-301 V4.1 and device profile DS-401 V2.0.
It mounts on DIN rail and uses CAGE CLAMP spring terminals for wiring.
A maximum of 64 modules per node is supported.
The isolation voltage between system and field is 500 V.
It supports 32 Tx and 32 Rx Process Data Objects (PDOs).
The existing database indicates RoHS3 Compliant status, but this has not been verified against a manufacturer certificate.
