| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Form | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

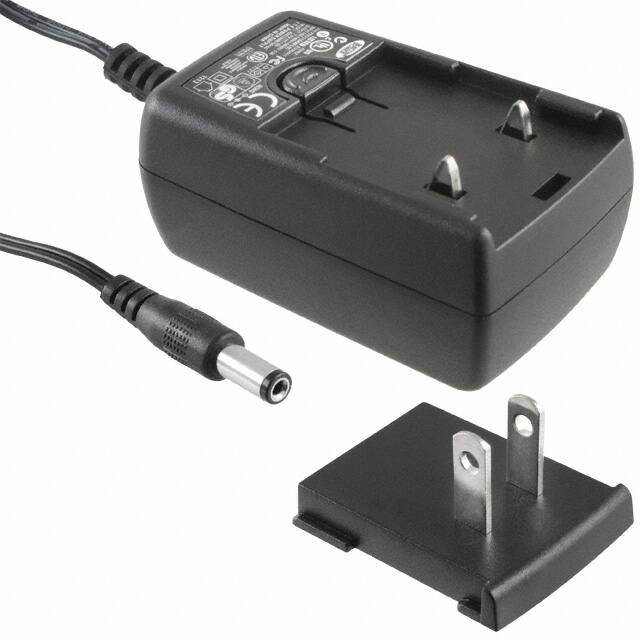

This AC/DC wall mount adapter from Parallax Inc., part number 750-00007, delivers a 12V output with a 1A current, totaling 12W of power. Designed for ITE (Commercial) applications, it utilizes a multi-blade input connector and includes the necessary blades.
The adapter features a standard barrel plug output with dimensions of 2.1mm inner diameter and 5.5mm outer diameter, with a length of 12.0mm. The polarization is set to positive center. Its form factor is a Class II wall mount type, suitable for international use.
Compliance information indicates RoHS3 compliance and an MSL of 1 (unlimited). REACH status is unaffected. This adapter is suitable for various commercial applications requiring a stable 12V power source.
The output voltage is 12V.
The maximum current output is 1A.
The total power rating is 12W.
It uses a Multi-Blade input connector.
The output barrel plug has a 2.1mm I.D. x 5.5mm O.D. x 12.0mm size.
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
