| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
109 pcs
|
109 pcs | On Request | 1 | On Request | On Request | 1328/ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Voltage Supply |
The 74VHCT125AFT from Toshiba Semiconductor and Storage is a non-inverting buffer designed for logic applications. It features 4 elements, each with 1 bit, and a 3-state output type. The device operates with a supply voltage between 4.5V and 5.5V, providing an output current of 8mA for both high and low states. Its operating temperature range is from -40°C to 125°C.
This buffer is available in a 14-TSSOP package and is suitable for surface mounting. The RoHS status is reported as RoHS3 Compliant, with an MSL of 1 Unlimited and REACH Unaffected status. This component is part of the 74VHCT series.
Key specifications include a logic type of Buffer, Non-Inverting, 4 elements, and 1 bit per element. The output type is 3-State, with a current output high/low of 8mA. The voltage supply range is 4.5V to 5.5V, and the operating temperature is -40°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.5V to 5.5V.

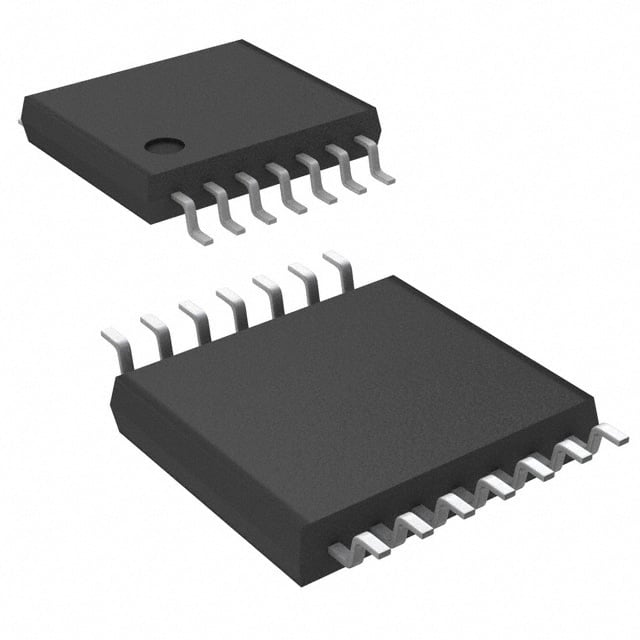

The device is available in a 14-TSSOP surface-mount package.
-40°C to 125°C.
It contains four independent buffer elements, each with one bit.
The outputs are 3-state, allowing a high-impedance state.
It provides 8mA output current in both high and low states.
