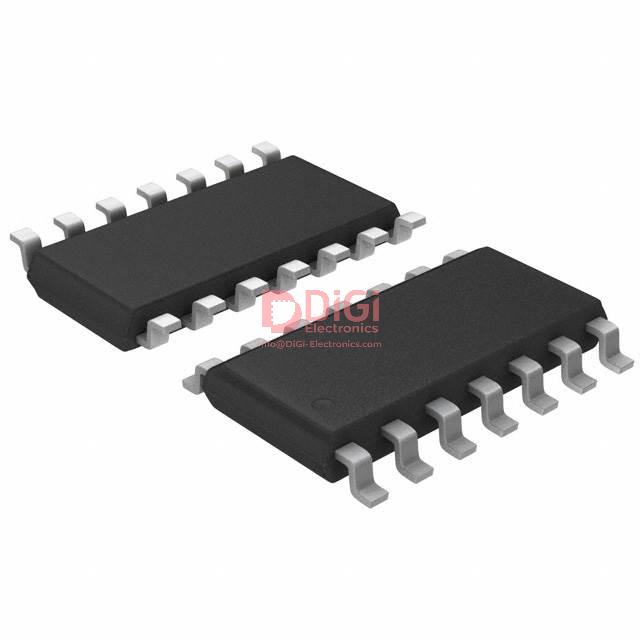

The STMicroelectronics M74HC266RM13TR is an integrated circuit belonging to the 74HC series, functioning as a 4-channel, 2-input XNOR logic gate. This component is designed for surface mount applications and features an Open Drain output configuration.
Key electrical characteristics include an operating supply voltage range of 2V to 6V, a low quiescent current of 1µA maximum, and an output current capability of 5.2mA. The input logic levels are defined between 0.5V to 1.8V for low and 1.5V to 4.2V for high. It offers a maximum propagation delay of 15ns at 6V with a 50pF load capacitance.
The operating temperature range for this IC is from -55°C to 125°C, making it suitable for a variety of environmental conditions. It is supplied in a Tape & Reel (TR) package, designed for automated assembly processes.
This XNOR gate IC is a fundamental building block in digital logic circuits, enabling complex boolean operations. Its specifications make it suitable for applications requiring reliable logic functions within a moderate voltage range.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 74VHC14TTR operates from 2V to 6V.
The operating temperature range is -55°C to 125°C.
The maximum propagation delay is 15ns at 6V with a 50pF load.
The 74VHC14TTR has open drain outputs.
It has 4 circuits with 2 inputs each.
The maximum quiescent current is 1µA.
