| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
583 pcs
|
583 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current - Quiescent (Max) | |
| Features | |
| Logic Type | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Voltage |
The Toshiba Semiconductor 74VHC14FT is a versatile 6-channel inverter integrated circuit featuring Schmitt Trigger inputs. This component is designed for logic applications requiring signal conditioning and noise immunity.
Key electrical characteristics include a wide operating supply voltage range from 2V to 5.5V, a low quiescent current of 2 µA, and output currents of 8mA for both high and low states. The propagation delay is specified at a maximum of 10.6ns at 5V with a 50pF load capacitance. Input logic levels are defined with a low threshold between 0.1V and 0.36V, and a high threshold between 2V and 4.5V.

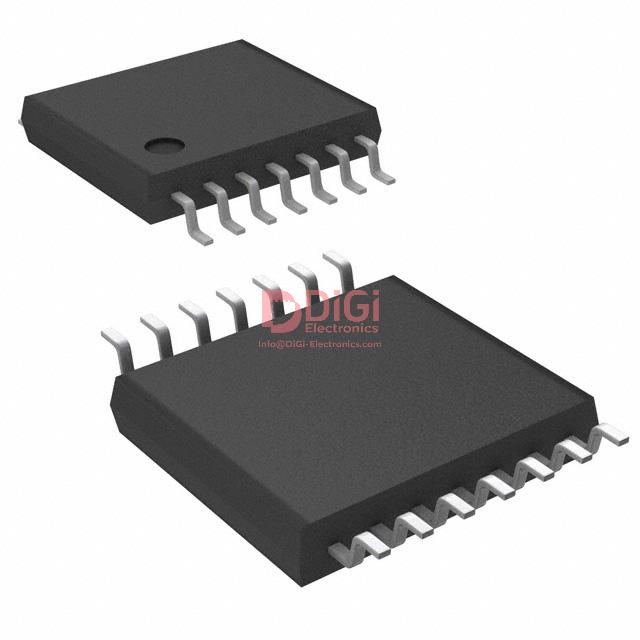

This IC is housed in a 14-TSSOPB package and is suitable for surface mounting. The operating temperature range is from -40°C to 125°C, making it robust for various environmental conditions. The 74VHC14FT is part of the 74VHC series, known for its high-speed CMOS technology.
Ideal for digital logic circuits, signal buffering, and waveform shaping, the 74VHC14FT offers reliable performance in demanding applications. Its Schmitt Trigger feature provides hysteresis, which is beneficial for cleaning up noisy input signals or creating oscillators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2V to 5.5V.
It comes in a 14-TSSOPB surface mount package.
The operating temperature range is -40°C to 125°C.
It contains six inverter circuits.
Yes, it features Schmitt trigger inputs.
The maximum propagation delay is 10.6 ns at 5V with a 50 pF load.
The logic type is Inverter.
