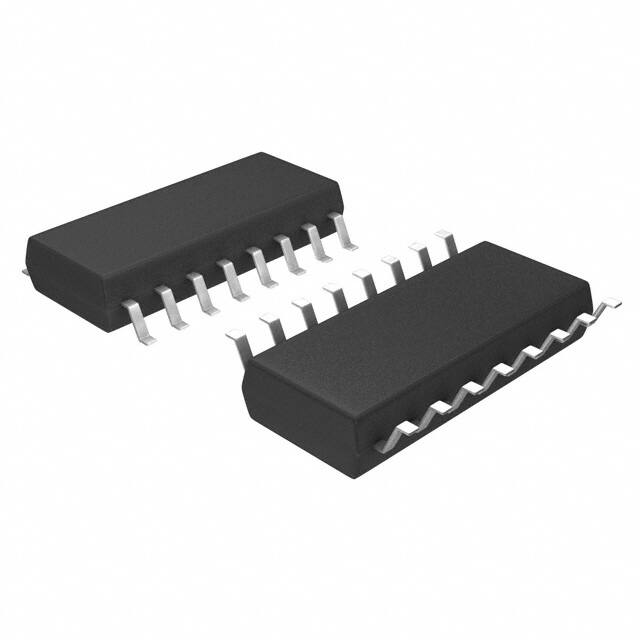

The 74VHC138SJ from On Semiconductor is a high-performance decoder/demultiplexer integrated circuit. It is part of the 74VHC series and is designed for logic applications requiring efficient signal routing.
This device operates with a supply voltage ranging from 2V to 5.5V, making it versatile for various system designs. It provides a 1x3:8 decoding capability, allowing for the selection of one of eight outputs based on a 3-bit input. The output current is rated at 8mA for both high and low states, ensuring adequate drive capability for connected components.
The 74VHC138SJ is housed in a 16-SOIC package with a width of 5.30mm, suitable for space-constrained printed circuit boards. It is designed for surface mounting, facilitating automated assembly processes. The operating temperature range is specified from -40°C to 85°C, ensuring reliable performance in diverse environmental conditions.
This decoder/demultiplexer is suitable for applications in digital logic systems, data routing, and control signal management where precise output selection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for the 74VHC138SJ is 2V to 5.5V.
The output current for the 74VHC138SJ is 8mA for both high and low states.
The operating temperature range is -40°C to 85°C.
The 74VHC138SJ is available in a 16-SOIC package.
The 74VHC138SJ is designed for surface mounting.
The circuit configuration is 1 x 3:8.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
