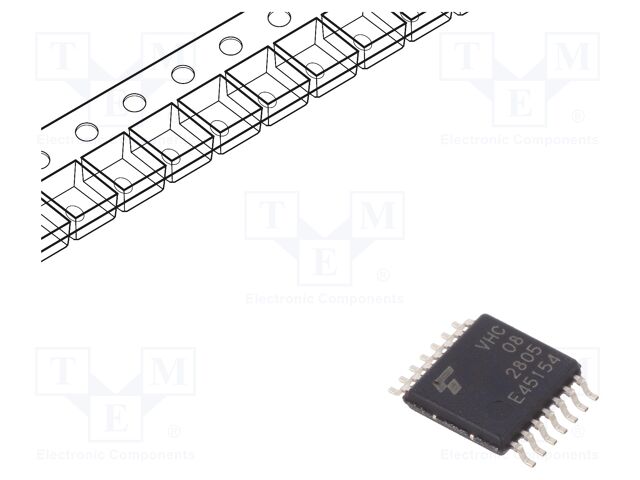

74VHC08FTBJ The Toshiba 74VHC08FTBJ is a digital integrated circuit featuring four 2-input AND gates. It operates within a 2 to 5.5 VDC supply voltage range.
Mfr Part #:

74VHC08FTBJ

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba 74VHC08FTBJ is a digital integrated circuit featuring four 2-input AND gates. It operates within a 2 to 5.5 VDC supply voltage range.
✓ Total Stock: 723,200 pcs
$ Price Range: $0.22

74VHC08FTBJ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
723,200 pcs
On Request
723200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74VHC08FTBJ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time
Gate Type
Lead Spacing
Lead Style
Mounting Type
Number of Channels
Number of Inputs
Operating Temperature
SVHC Present
Supply Voltage
Tape & Reel
View Similar Products (0)

74VHC08FTBJ Description

Short technical summary and product information.

This Toshiba 74VHC08FTBJ is a digital integrated circuit belonging to the VHC family, specifically designed as a quad 2-input AND gate. It offers a reliable solution for digital logic operations in various electronic systems.



The IC operates with a supply voltage ranging from 2 to 5.5 VDC, making it suitable for a wide array of applications. Its operating temperature range is -40 to 125°C, ensuring performance in diverse environmental conditions. The component features a propagation delay of 4.3 ns, contributing to efficient signal processing.



Packaged in a compact TSSOP14 surface-mount case, the 74VHC08FTBJ is designed for automated assembly processes. The terminal pitch is 0.65mm, and it is supplied on a reel with a standard package quantity of 1000 pieces. This configuration is ideal for high-volume manufacturing.



Key specifications include its AND gate functionality, four independent channels, and two inputs per channel. The device is RoHS3 compliant, MSL 1, and REACH unaffected, though these compliance statuses are based on available database information and may require verification.

74VHC08FTBJ Quick Information

Product Type: AND Gate IC
Series: 74VHC
Canonical Name: Toshiba 74VHC08FT(BJ) Quad 2-Input AND Gate IC
Subcategory: Gates and Inverters

74VHC08FTBJ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74VHC08FTBJ Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

74VHC08FTBJ Features

  • Quad 2-input AND gate functionality.
  • Operates from 2 to 5.5 VDC supply.
  • Wide -40 to 125°C temperature range.
  • Fast 4.3 ns propagation delay.
  • TSSOP14 surface-mount package.

74VHC08FTBJ Applications

  • Digital logic circuit implementation.
  • Signal processing applications.
  • Embedded system design.
  • Control and switching functions.

74VHC08FTBJ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the 74VHC08FTBJ?

2V to 5.5V DC.

What package type is the 74VHC08FTBJ available in?

Surface mount TSSOP-14 package.

What is the operating temperature range of the 74VHC08FTBJ?

-40°C to 125°C.

How many AND gates are in the 74VHC08FTBJ?

Four 2-input AND gates.

What is the typical propagation delay of the 74VHC08FTBJ?

4.3 ns.

Which logic family does the 74VHC08FTBJ belong to?

VHC (Very High Speed CMOS) family.
