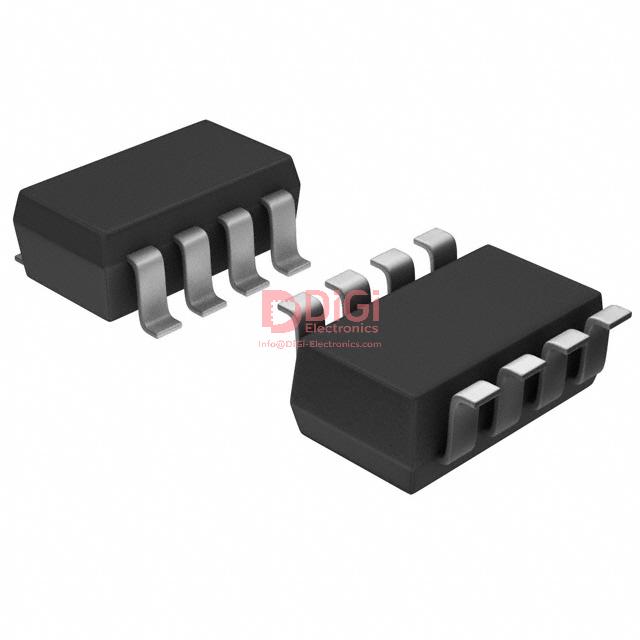

74V2T08STR The STMicroelectronics 74V2T08STR is a 2-channel, 2-input AND Gate IC. It operates with a supply voltage range of 4.5V to 5.5V and is available in a surface mount SOT-23-8 package.
Mfr Part #:

74V2T08STR

Available from 1 distributors
Mfr Name: ST
ST
The STMicroelectronics 74V2T08STR is a 2-channel, 2-input AND Gate IC. It operates with a supply voltage range of 4.5V to 5.5V and is available in a surface mount SOT-23-8 package.
✓ Total Stock: 36,160 pcs
$ Price Range: $0.22

74V2T08STR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
36,160 pcs
On Request
36160 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74V2T08STR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current - Quiescent (Max)
Lead Spacing
Lead Style
Logic Type
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Storage Temperature
Tape & Reel
Voltage Supply
View Similar Products (0)

74V2T08STR Description

Short technical summary and product information.

The STMicroelectronics 74V2T08STR is an integrated circuit featuring two independent 2-input AND gates. This logic gate IC is designed for operation within a supply voltage range of 4.5V to 5.5V. It offers a low quiescent current of 1 µA and output currents of 8mA for both high and low states. The input logic levels are specified with a low threshold of 0.8V and a high threshold of 2V. The maximum propagation delay is 6.5ns at 5V and 50pF. This component is housed in a compact SOT-23-8 package, suitable for surface mounting. The operating temperature range is from -55°C to 125°C, making it versatile for various environmental conditions. Its design makes it suitable for digital logic applications requiring reliable AND gate functionality.

74V2T08STR Quick Information

Product Type: AND Gate IC
Series: 74V
Canonical Name: STMicroelectronics 74V2T08STR AND Gate IC
Subcategory: AND Gate

74V2T08STR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

74V2T08STR Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

74V2T08STR Features

  • Dual 2-input AND gate logic.
  • Operates from 4.5V to 5.5V supply.
  • Low quiescent current of 1 µA.
  • Fast propagation delay of 6.5ns.
  • Surface mount SOT-23-8 package.

74V2T08STR Applications

  • Digital logic circuit implementation.
  • Control and signal gating.
  • Embedded system design.
  • Consumer electronics applications.

74V2T08STR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 74V2T08STR?

4.5V to 5.5V.

What is the package type of the 74V2T08STR?

SOT-23-8.

What is the operating temperature range of the 74V2T08STR?

-55°C to 125°C.

How many gates are in the 74V2T08STR?

Two independent AND gates.

What is the output current capability?

8mA for both high and low levels.

What is the propagation delay of the 74V2T08STR?

6.5ns at 5V and 50pF load.

What are the input logic level thresholds?

Low: 0.8V, High: 2V.
