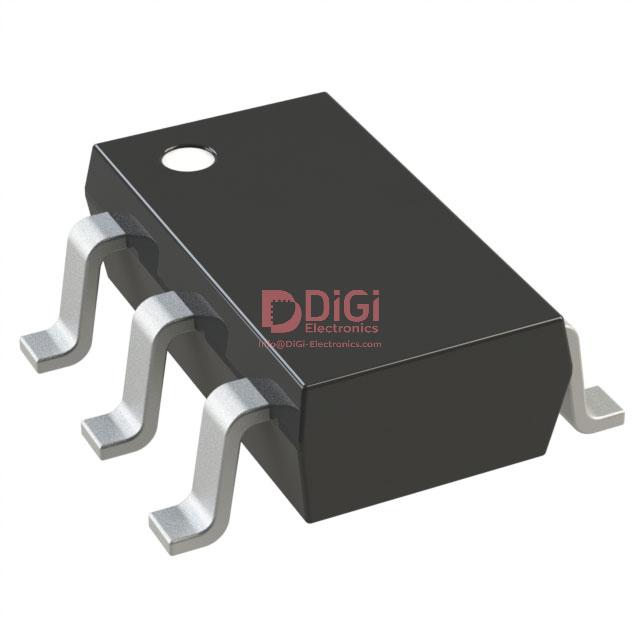

74V1G32STR The STMicroelectronics 74V1G32STR is a single 2-input OR gate IC. It operates from a 2V to 5.5V supply and features low power dissipation.
Mfr Part #:

74V1G32STR

Available from 2 distributors
Mfr Name: ST
ST
The STMicroelectronics 74V1G32STR is a single 2-input OR gate IC. It operates from a 2V to 5.5V supply and features low power dissipation.
✓ Total Stock: 395,292 pcs
$ Price Range: $0.22

74V1G32STR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
361,600 pcs
On Request
361600 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
33,692 pcs
On Request
33692 pcs On Request 1 On Request On Request 1305+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74V1G32STR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
Operating Voltage
Output Voltage
SVHC Present
Storage Temperature
Tape & Reel
View Similar Products (0)

74V1G32STR Description

Short technical summary and product information.

The 74V1G32STR from STMicroelectronics is a high-speed CMOS single 2-input OR gate. Fabricated with sub-micron silicon gate technology, it offers high noise immunity and stable output.



This OR gate operates over a wide voltage range of 2V to 5.5V, making it suitable for interfacing between different voltage levels, such as 5V and 3V systems. It exhibits low power dissipation with a typical quiescent current of just 1µA at 25°C.



Key electrical characteristics include a propagation delay of 3.8ns (typical) at 5V and symmetrical output impedance with |IOH|=|OL|=8mA (minimum) at 4.5V. The device features power-down protection on all inputs, allowing inputs to accept voltages from 0 to 7V without regard to the supply voltage.



Packaged in a surface-mount SOT-23-5 configuration, the 74V1G32STR is designed for efficient integration into various electronic circuits. Its balanced propagation delays and improved latch-up immunity contribute to reliable performance in demanding applications.

74V1G32STR Quick Information

Product Type: OR Gate
Series: 74V
Canonical Name: 74V1G32STR Single 2-Input OR Gate
Subcategory: OR Gate

74V1G32STR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

74V1G32STR Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

74V1G32STR Features

  • Single 2-input OR gate IC.
  • Wide 2V to 5.5V operating voltage range.
  • Low quiescent current of 1µA maximum.
  • High-speed operation with 3.8ns typical delay.
  • Surface mount SOT-23-5 package.

74V1G32STR Applications

  • Used in battery-powered portable electronics.
  • Ideal for signal gating in digital circuits.
  • Suitable for level translation interfaces.
  • Applicable in industrial control systems.
  • Used in automotive logic modules.

74V1G32STR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 74V1G32STR?

The operating voltage range is 2V to 5.5V.

What package does the 74V1G32STR come in?

The device is available in a SOT-23-5 surface-mount package.

What is the operating temperature range of the 74V1G32STR?

The operating temperature range is -55°C to 125°C.

What is the quiescent current of the 74V1G32STR?

The maximum quiescent current is 1µA at 25°C.

What is the typical propagation delay of the 74V1G32STR?

The typical propagation delay is 3.8ns at 5V supply.

What is the output current capability of the 74V1G32STR?

The output can source or sink 8mA minimum at 4.5V supply.
