| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
264 pcs
|
264 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Gate Type | |
| Number of Gates |

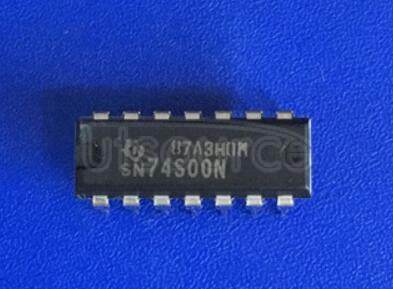

The SIG 74S00N is a high-speed TTL (Transistor-Transistor Logic) integrated circuit featuring four independent 2-input NAND gates. This component belongs to the 'S' (Schottky) family, known for its faster switching speeds compared to standard TTL devices.
Each of the four gates within the 74S00N operates as a standard NAND gate, producing a low output only when all of its inputs are high. The device is designed for digital logic applications requiring reliable and fast logic operations.
This integrated circuit is typically housed in a Dual In-line Package (DIP), making it suitable for breadboarding and through-hole mounting on printed circuit boards. Its robust design and established performance make it a common choice for various digital electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.16 | $10.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The logic family of the 74S00N is 'S'.
The 74S00N contains four gates.
Each gate has two inputs.
The 74S00N is packaged in a DIP form factor.
The RoHS status is unverified; it is marked as RoHS3 compliant with low confidence.
